Game Boy Pocket Bivert Module | Mini

Sale price
$4.49 USD
List price
$4.99 USD
You save
-$0.50 USD (11%)
This item is temporarily out of stock
SKU: GBP1534
Pickup currently unavailable at 519 Davisville Rd.

A mini game boy pocket bivert module to simplify your installation and save room in your case. Bivert Modules, also known as Hex modules, will invert your pixels and enhance your display if you are using a backlight.

  • 1 module included
  • No wires needed
  • Electrical solder and soldering iron required

Instructions (see also product images)

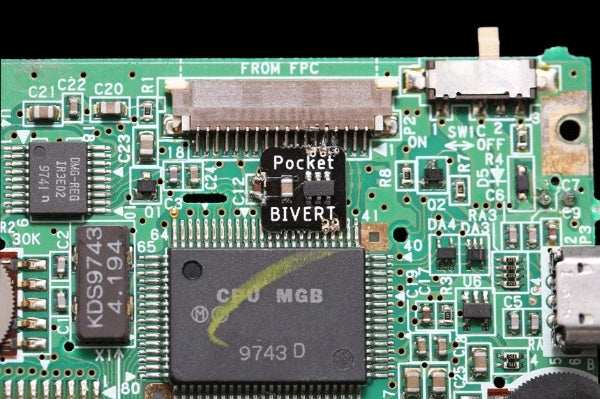

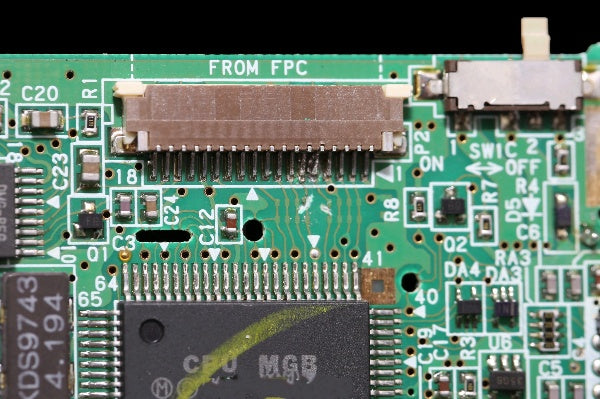

  1. Cut the traces outlined in the product photos to ensure proper function (be careful not to cut any other traces)
  2. Prep your module by applying a small amount of electrical solder on the bottom and side of each pad.
  3. Flux will help your solder flow where you would like it to, so apply it sparingly to the desired contact point.
  4. Solder your module to the capacitor directly left of the cut traces and align the top and bottom pairs of pads to the traces you just cut.
  5. Press down on the top of the pad with a fine tipped soldering iron and allow the heat to travel to the bottom of the board and melt the solder underneath.
  6. Your module should be securely attached.
  7. Test your LCD for correct installation.
  8. Enjoy!

Install Video by The Retro Future. Please skip ahead to 3:15 to see the proper install.

Created and inspired by J. Rodrigo; Installed close-up photo by Kyle Bottorff.
