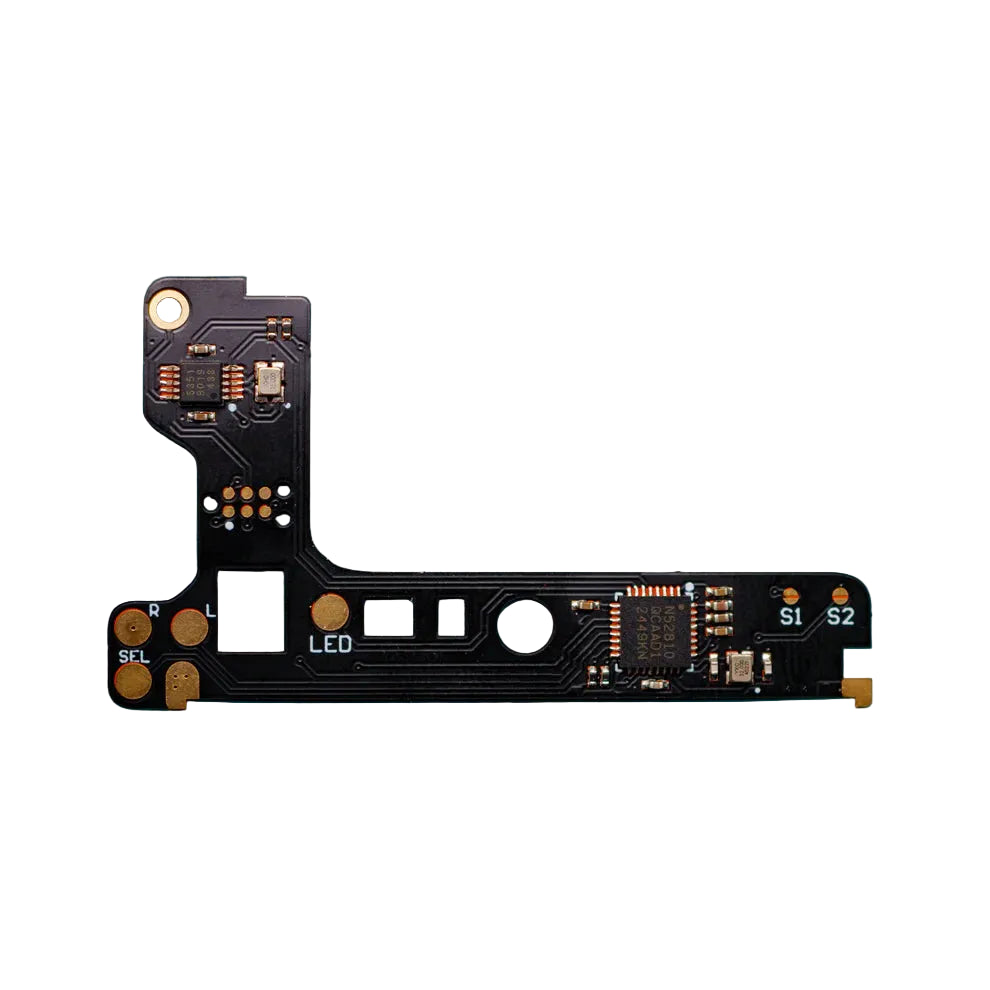

Game Boy Advance SP Overclocker Flex - Robot_Retro
Hand Held Legend
Pickup available, usually ready in 2-4 days
519 Davisville Road
Unit 102
Willow Grove PA 19090
United States
FEATURES
- Supports adjustable clock speeds at 30%, 50%, 75%, 130%, 150%, and 170% of the base clock:
Increase speed: Press Select and R shoulder button together
Decrease speed: Press Select and L shoulder button together
- Optional LED indicator:
Power LED blinks faster when overclocked
Power LED blinks slower when underclocked
Solid green LED at base (stock) speed
- Top speed limits configurable to 170%, 150%, or 130% depending on your screen setup:
Default max speed: 170% (Hispeedido v5)
Bridge solder jumper S1 to limit max speed to 150% (for stock LCD)
Bridge solder jumper S2 to limit max speed to 130% - Ultra-low power consumption: <15mA (measured with Nordic Power Profiler Kit II)
- Extremely accurate base clock: 4.194 MHz ±0.01%, matching the original GBA SP crystal at stock speeds
The Gameboy Advance SP Overclocker Flex from Robot_Retro allows for easy overclocking or underclocking of your device. With a streamlined installation process that eliminates the need for manual wiring (except for an optional LED indicator wire), this mod makes it simple to customize your gaming experience.
-
Installation
Multicoloured wire is included to aid with the install.
- Remove the original GBA SP crystal. (Recommended: Use a hot air station for clean removal)
- Install the flex mod as per the photos.
- Solder the 3 points highlighted in pink circles.
- Run wires to the 3 test points shown as the red, pink and blue wires.
- Use flux for best soldering results.
- (Optional) To enable the LED speed indicator, solder the green wire as shown.
-
Speed Limiting
- Bridge solder jumper S1 to limit the speed to 150%.
- Bridge solder jumper S2 to limit the speed to 130%.
