Game Boy Color Retro Pixel 2.0 Q5 IPS LCD Backlight Kit with Laminated Lens and OSD - FunnyPlaying

Game Boy Color Retro Pixel 2.0 Q5 IPS LCD Backlight Kit with Laminated Lens and OSD - FunnyPlaying

Regular price €60,95
Sale price €60,95 Regular price
Save €-60,95 Sold out
Black

SKU : GBC1742

**This kit is strongly recommended to use with these shells only**

Backlight and illuminate your beloved childhood GBC with a modern IPS LCD with improved color, contrast and viewing angle. This enhanced version of the 1.0 kit comes with a custom lens pre laminated to the LCD, choose your color.

FEATURES:

  • Adds function to adjust position of the screen window
  • Applicable console text is present on lens. Adds function to change logo backlight display and color.

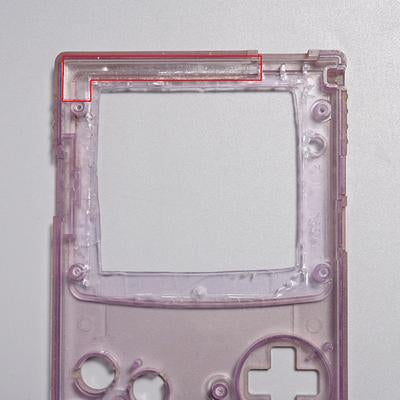

  • Display area is larger than the original. Best when using a custom laminated shell from Funnyplaying. Shell modification required for all other shells.
  • Soldering required for brightness and retro pixel control.
  • Soldering may be required for kit to function. Please see 'Notes' section.
  • Built-in 5 display effects.
  • 4x Integer scaling
  • LCD and ribbon power between 0.29W and 0.68W
  • Pre laminated lens on the LCD
  • Touch enabled function control for brightness and pixel modes
  • No frame dropping or tearing

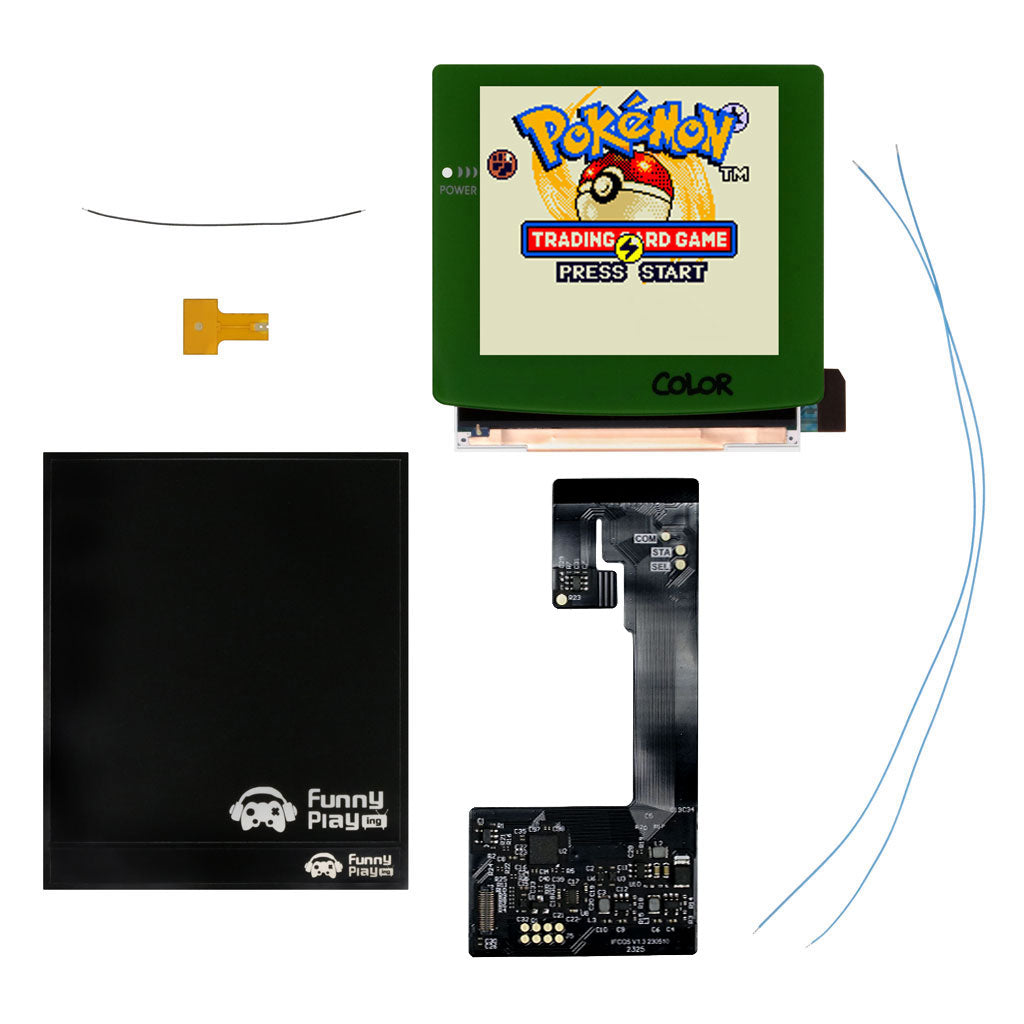

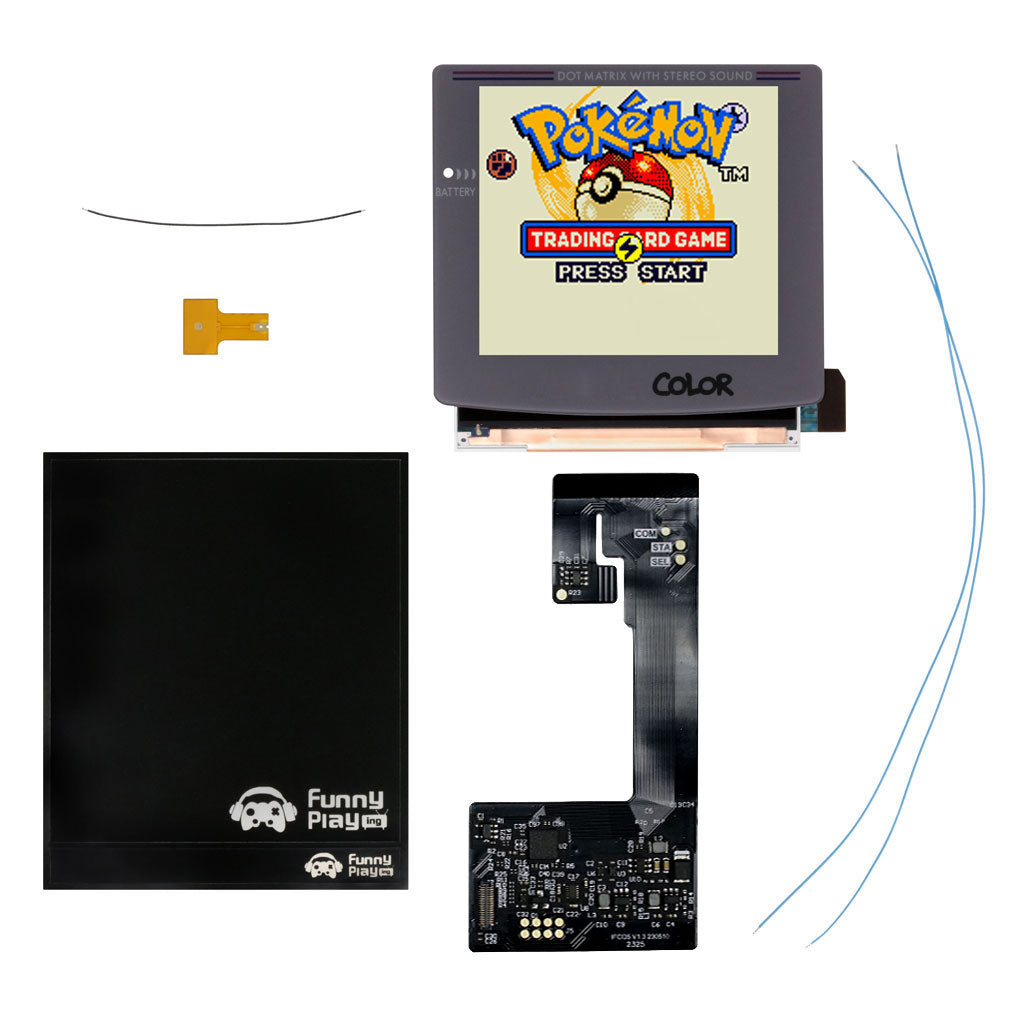

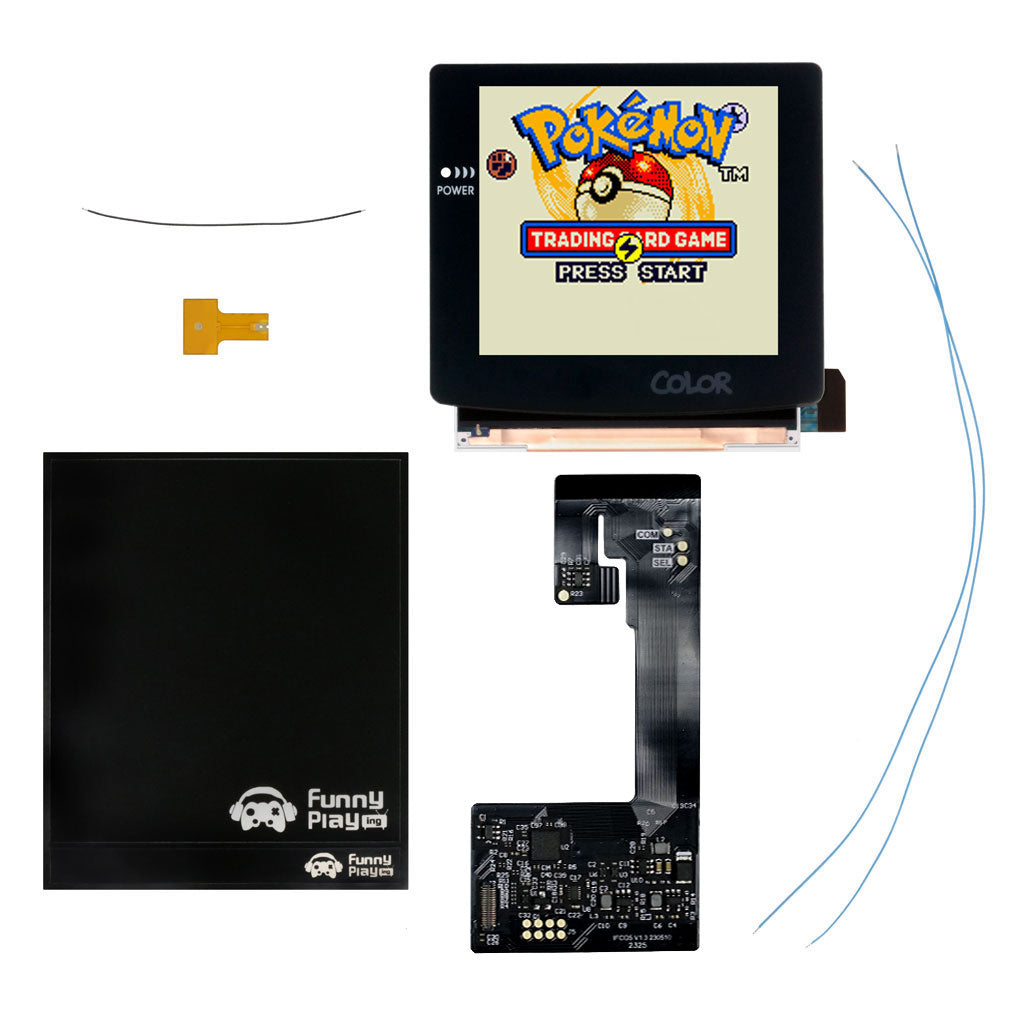

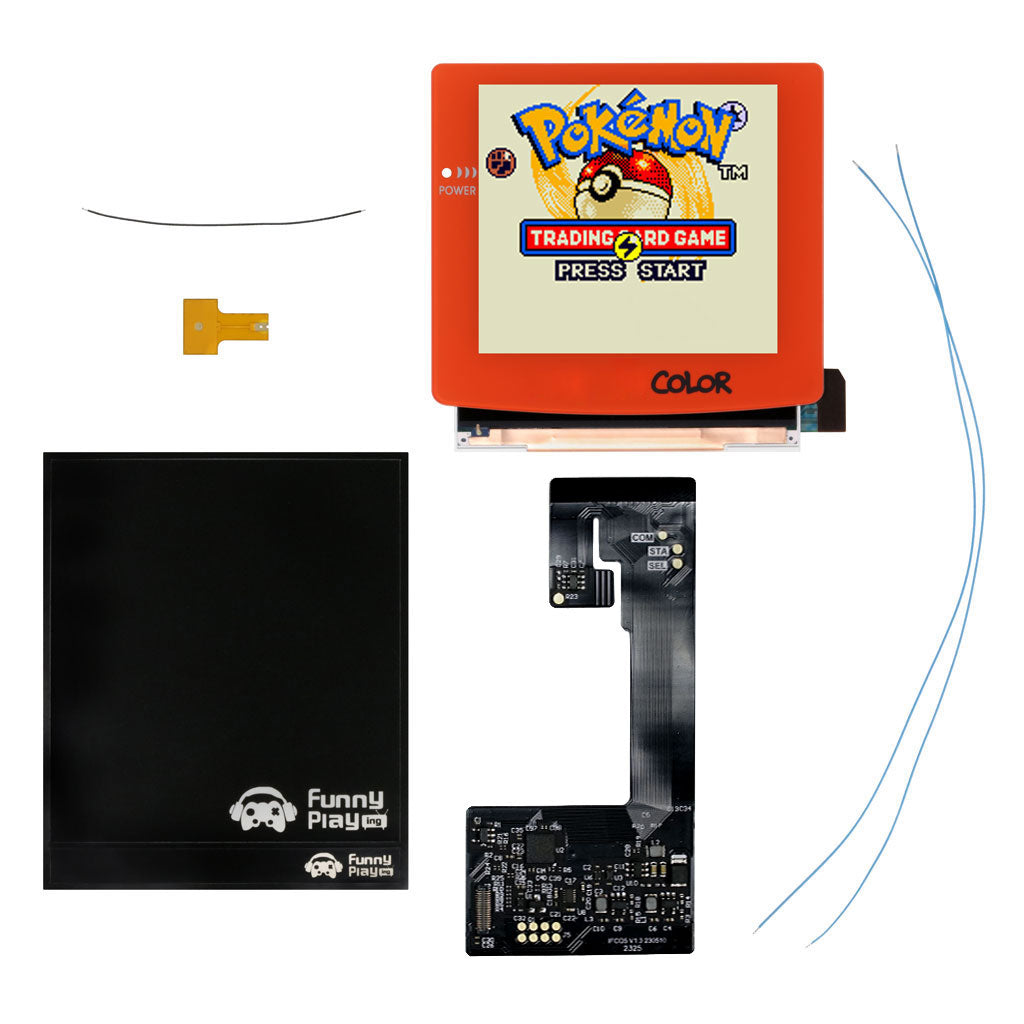

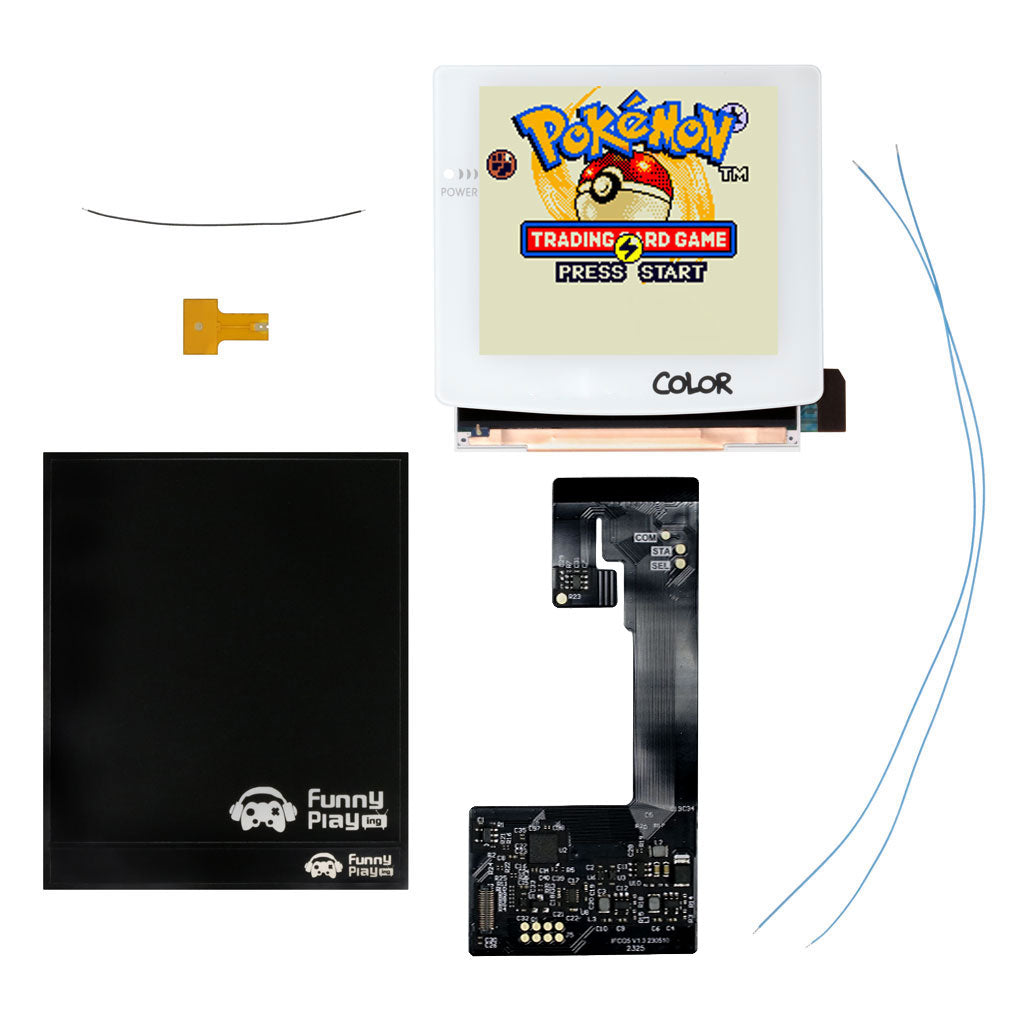

INCLUDED:

  • 1x Q5 IPS LCD with laminated lens adhered (see warnings)
  • 1x PCB ribbon cable
  • 1x Touch sensor ribbon (see notes)
  • 3x Wires
  • 1x Insulation film

PAIRS WELL WITH:

FUNCTIONS:

START and SELECT function:

  • Hold down START and SELECT together for a few seconds to open the OSD menu.
  • Quick press START and SELECT to make adjustments in the current menu option.
  • To move to the next menu option or back to a previous menu option, hold either START or SELECT in the direction of the menu option needed.
  • To exit the OSD menu, hold down START and SELECT together for a few seconds or the menu will time out on its own.

TOUCH SENSOR function:

  • Tap and hold the touch sensor for 3 seconds to open OSD menu.
  • Quick tap to make adjustments in the current menu option.
  • To move to the next menu option, tap and hold the touch sensor for 2 seconds.
  • To exit the OSD menu, hold the touch sensor for 3 seconds or the menu will time out on its own.

OSD menu options:

  • BRT = Brightness options
  • DSP = Pixel Modes
  • FRM = Frame Blending Mode - flicker reduction
  • LGC = GBC logo color options
  • R/G/B = Customize GBC logo color options
  • N = Move the display image left and right respectively

PIXEL MODES:

  • Built-in 5 display effects.
  • Full pixel copy display (display the highest brightness, gorgeous and concise)
  • Classic GBC display (perfectly restore the original display effect)
  • Classic RGB display (perfectly restore the original display effect, and the pixel gap looks smaller, the brightness will be slightly darker)
  • RGB display (closest to the original display, but the brightness is very low)
  • Grid line display (close to the display effect of DMG)

DOCUMENTATION:

NOTES:

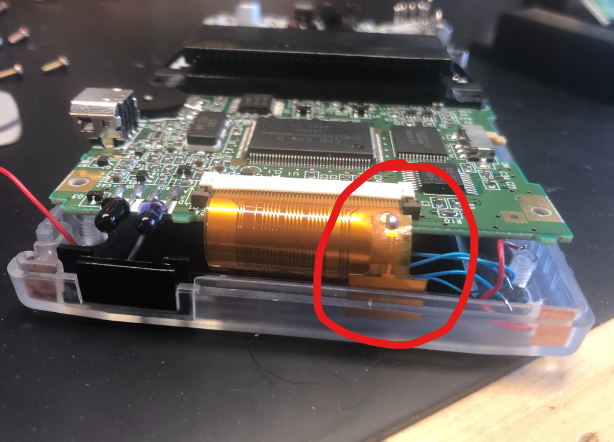

  • Kits may no longer include a touch sensor as a separate item. This kit has a touch sensor already included on the black ribbon cable. You may use this one by simply folding into the front or back of the shell, to rest on the top of the shell. You may also use the included touch sensor ribbon and solder it onto the 'TCH' point. Depending on the size/shape of this touch ribbon will change it's placement within the shell.

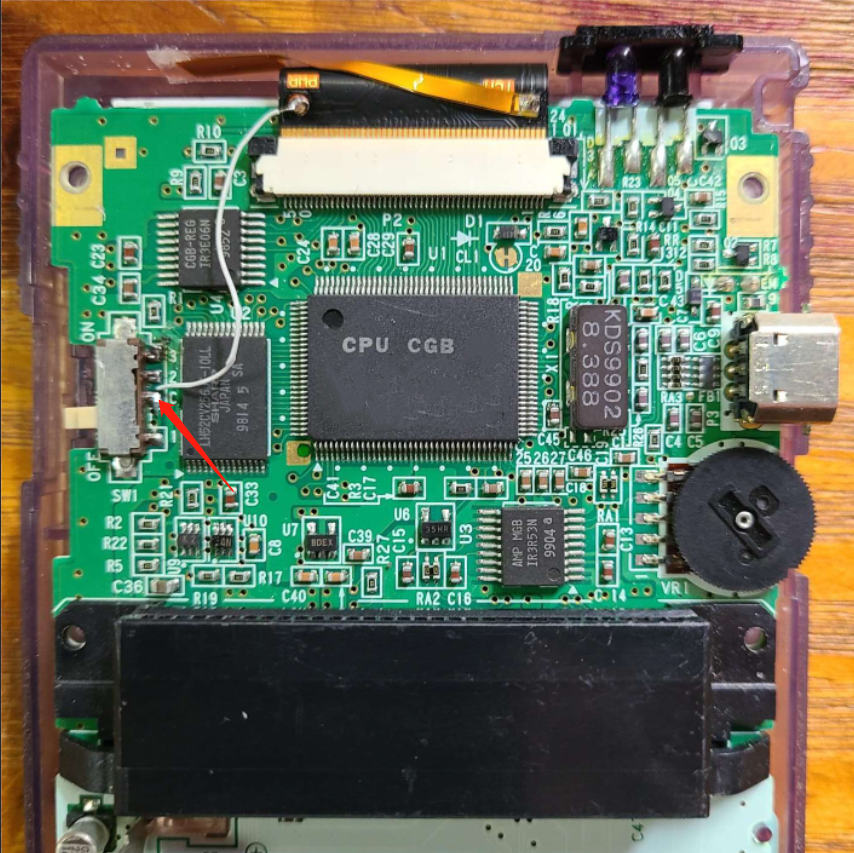

  • The power wire may need to soldered for the LCD to show an image. It may not be required with later versions, however, in order to receive maximum brightness on the LCD this wire will need to be soldered on. If your LCD is not showing an image (remains black but you hear the start chime), please solder the PWR wire.
  • After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.

WARNINGS:

  • You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
  • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
  • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
Read More
