The Gameboy Advance SP Overclocker Flex from Robot_Retro allows for easy overclocking or underclocking of your device. With a streamlined installation process that eliminates the need for manual wiring (except for an optional LED indicator wire), this mod makes it simple to customize your gaming experience.

FEATURES:

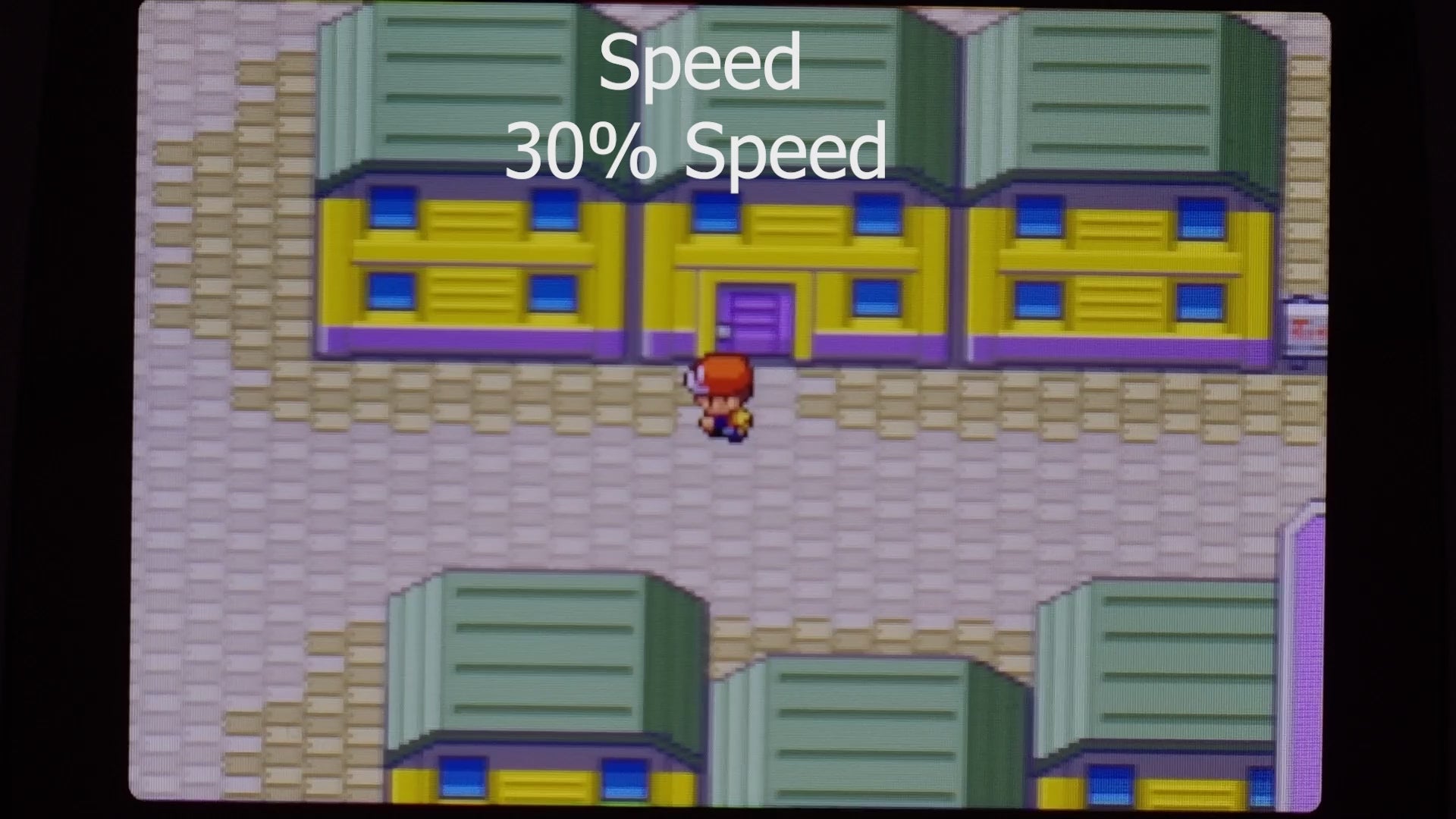

  • Supports adjustable clock speeds at 30%, 50%, 75%, 130%, 150%, and 170% of the base clock:
    Increase speed: Press Select and R shoulder button together
    Decrease speed: Press Select and L shoulder button together
  • Optional LED indicator:
    Power LED blinks faster when overclocked
    Power LED blinks slower when underclocked
    Solid green LED at base (stock) speed
  • Top speed limits configurable to 170%, 150%, or 130% depending on your screen setup:
    Default max speed: 170% (Hispeedido v5)
    Bridge solder jumper S1 to limit max speed to 150% (for stock LCD)
    Bridge solder jumper S2 to limit max speed to 130%
  • Ultra-low power consumption: <15mA (measured with Nordic Power Profiler Kit II)
  • Extremely accurate base clock: 4.194 MHz ±0.01%, matching the original GBA SP crystal at stock speeds

    INCLUDED:

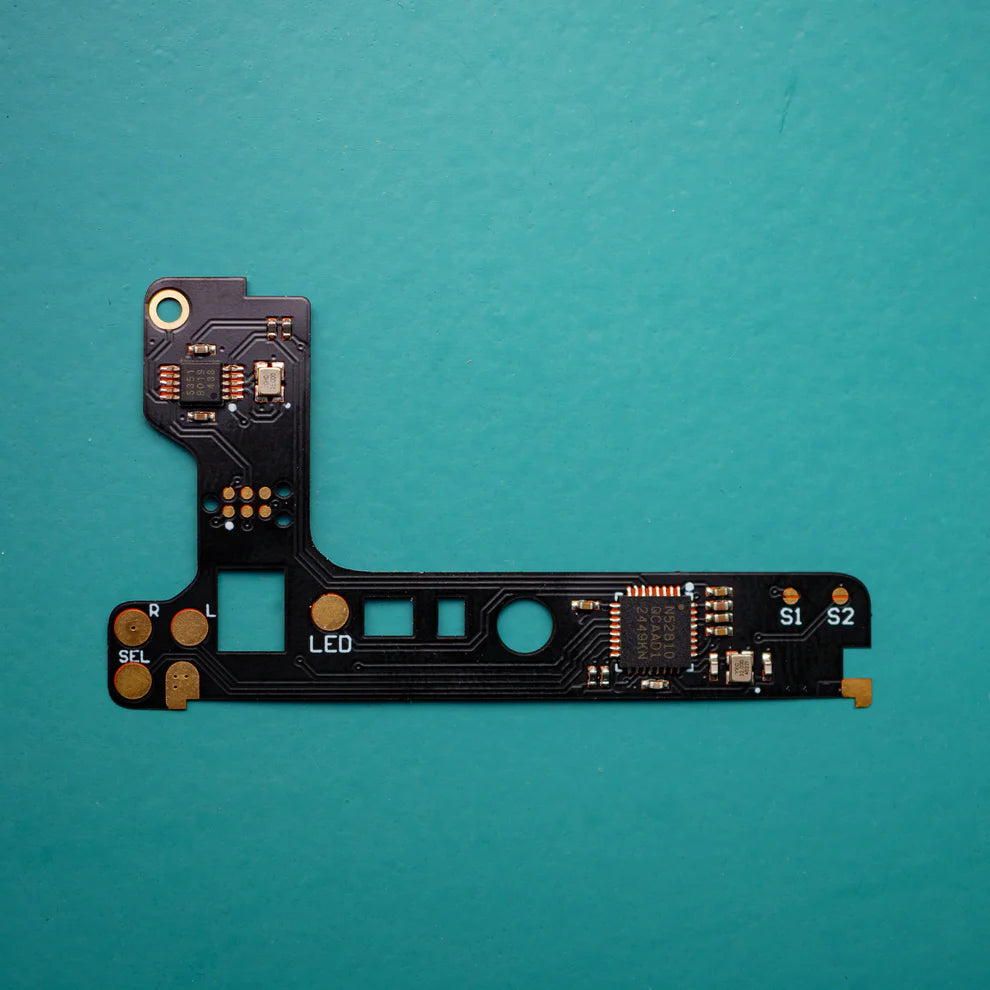

  • 1x GBA SP Overclocker Flex
  • 1x Wire


    PAIRS WELL WITH:

  • Game Boy Advance SP V5 3.0 Inch IPS LCD Backlight Kit with Laminated Lens and OSD - Hispeedido


    NOTES:

  • Installation

    Multicoloured wire is included to aid with the install.

    1. Remove the original GBA SP crystal.  (Recommended: Use a hot air station for clean removal)
    2. Install the flex mod as per the photos.

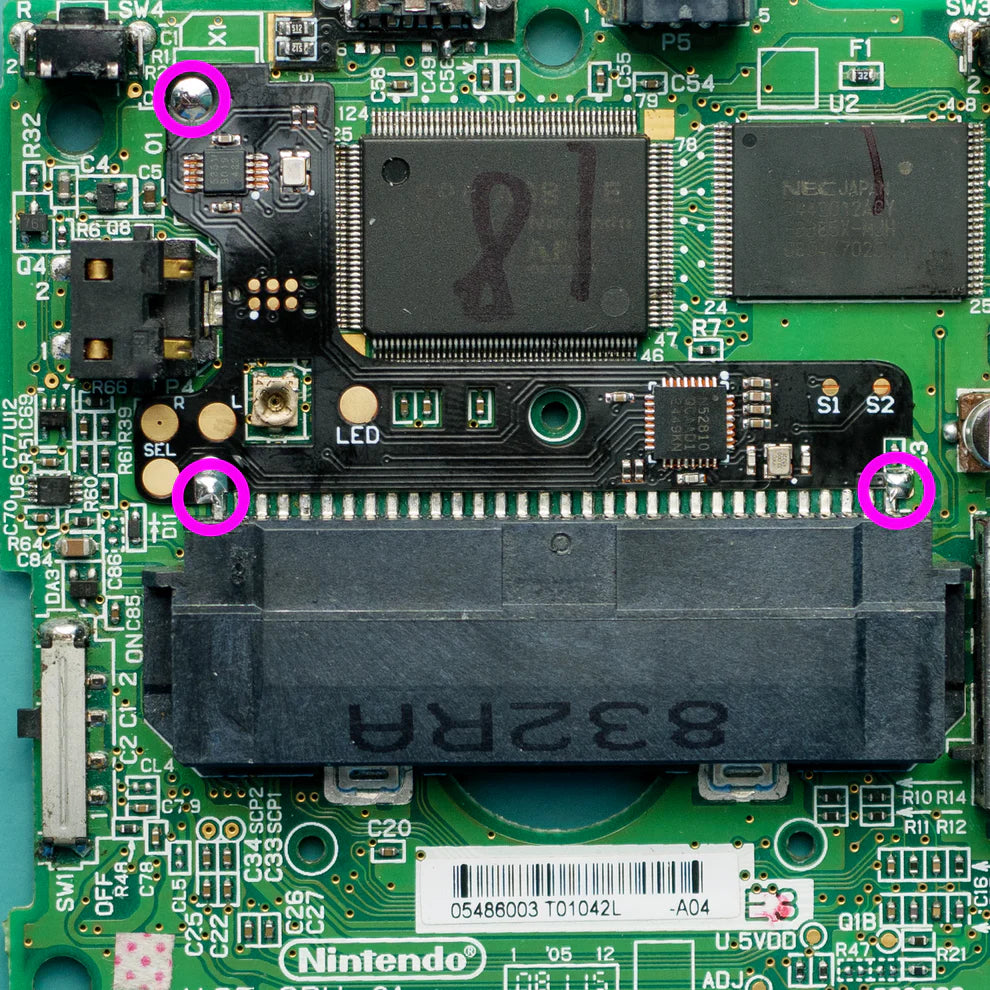

    3. Solder the 3 points highlighted in pink circles.

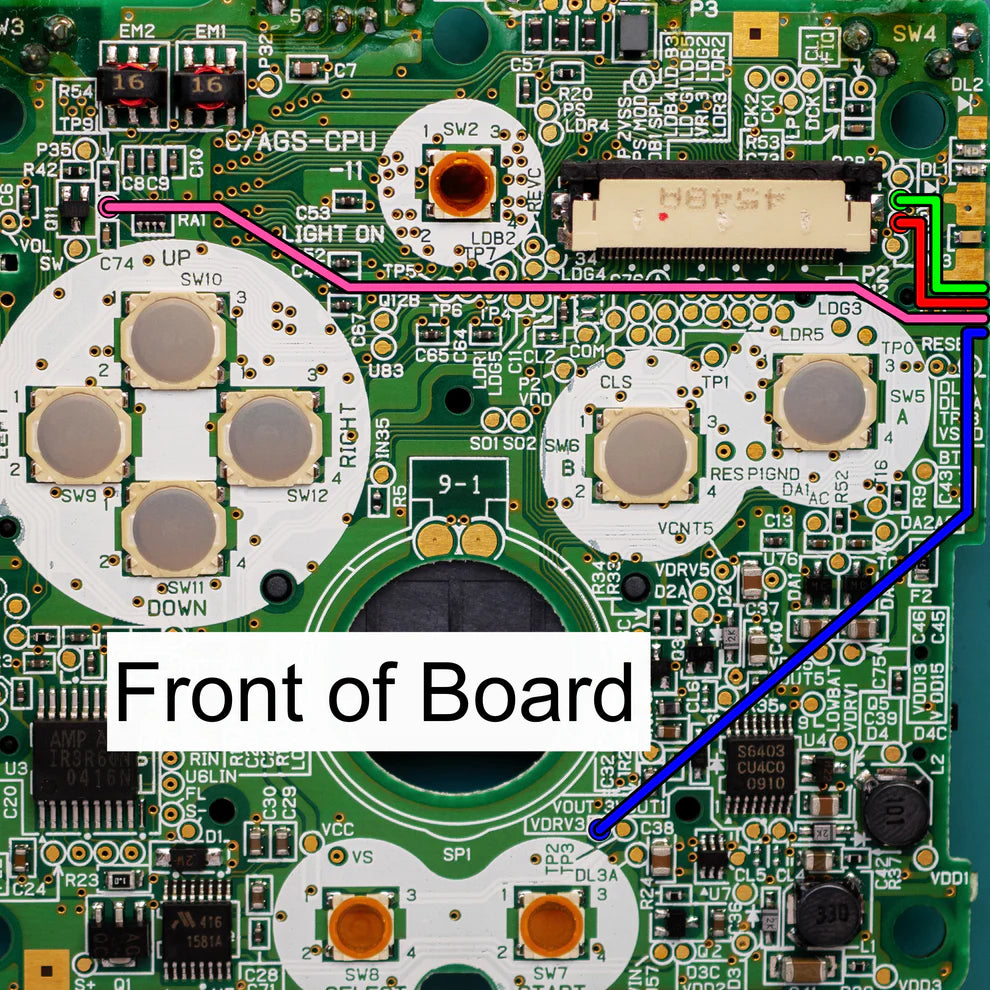

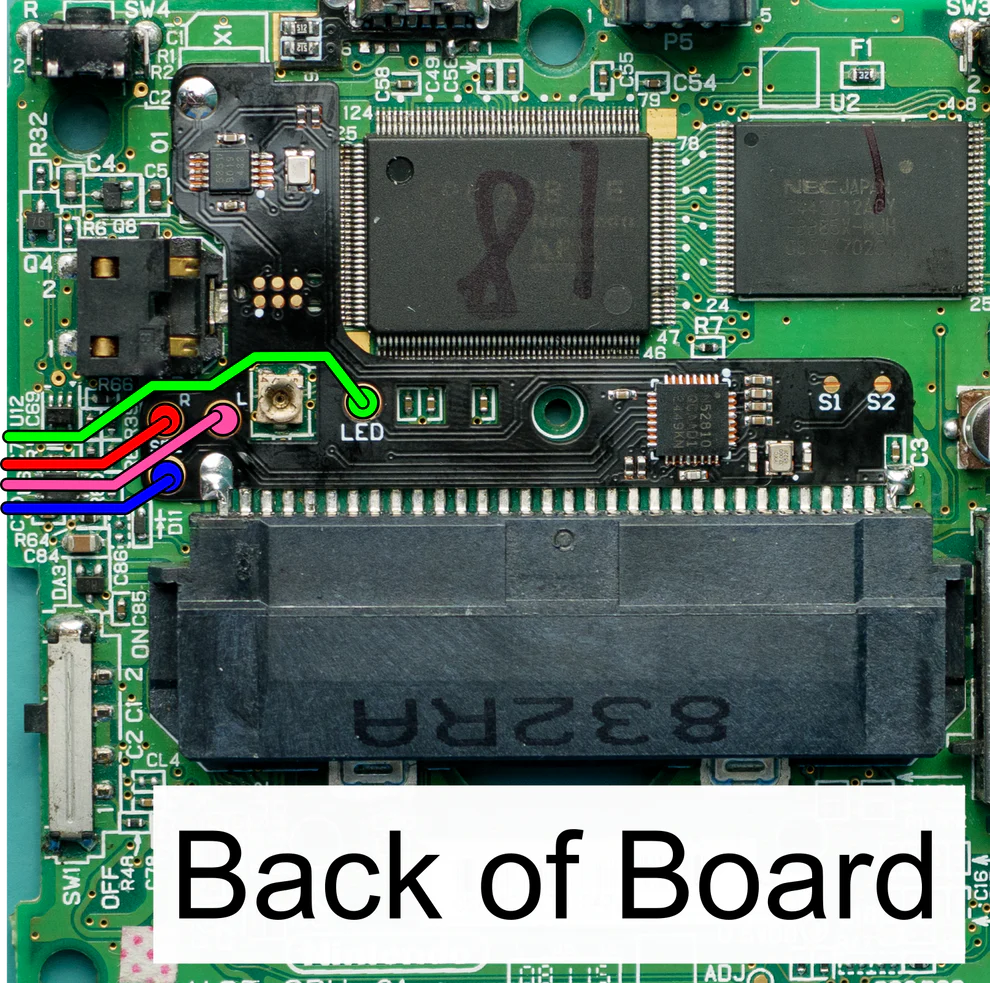

    4. Run wires to the 3 test points shown as the red, pink and blue wires.
    5. Use flux for best soldering results.
    6. (Optional) To enable the LED speed indicator, solder the green wire as shown.

  • Speed Limiting

    • Bridge solder jumper S1 to limit the speed to 150%.
    • Bridge solder jumper S2 to limit the speed to 130%.
