Gameboy Advance Overclocker Flex - Robot_Retro

€22,95
2 reviews
2 reviews
SKU: GBA6603

Quantity:
Pickup available at 519 Davisville Rd. Usually ready in 2-4 days

Gameboy Advance Overclocker Flex - Robot_Retro

519 Davisville Rd.

Pickup available, usually ready in 2-4 days

519 Davisville Road
Willow Grove PA 19090
United States

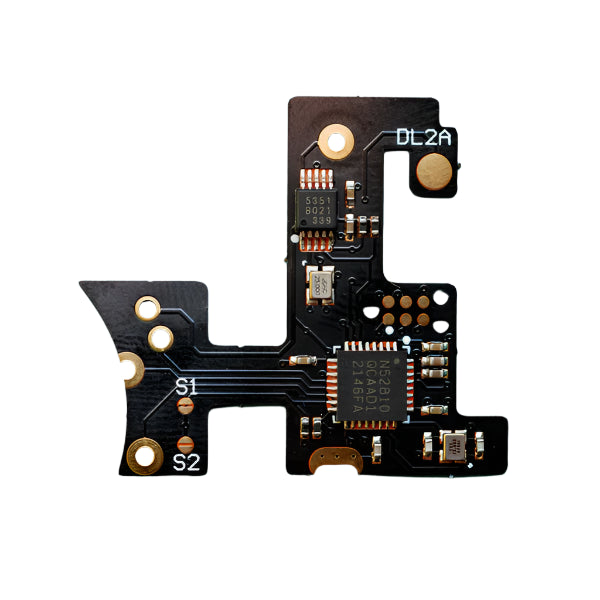

The Gameboy Advance Overclocker Flex from Robot_Retro allows for easy overclocking or underclocking of your device. With a streamlined installation process that eliminates the need for manual wiring (except for an optional LED indicator wire), this mod makes it simple to customize your gaming experience.

FEATURES:

  • Capable of over and underclocking to 30%, 50%, 75%, 130%, 150% or 170% of base clock.
  • Easy flex installation with optional wire link to LED DL2A.  Power LED will blink faster when overclocked and slower when underclocked.  Base speed is a solid green LED.
  • Very low power consumption.  Measured as <15mA using the Nordic Power Profiler Kit II.
  • Accurate base clock (4.194Mhz).  Measured as >0.01% accurate.  There is will no difference between this mod and the original GBA crystal at stock speeds.

INCLUDED:

  • 1x GBA Overclocker Flex
  • 1x Wire

PAIRS WELL WITH:

NOTES:

  • Installation

    • Remove the GBA crystal.  Recommended to use a hot air station for this step.

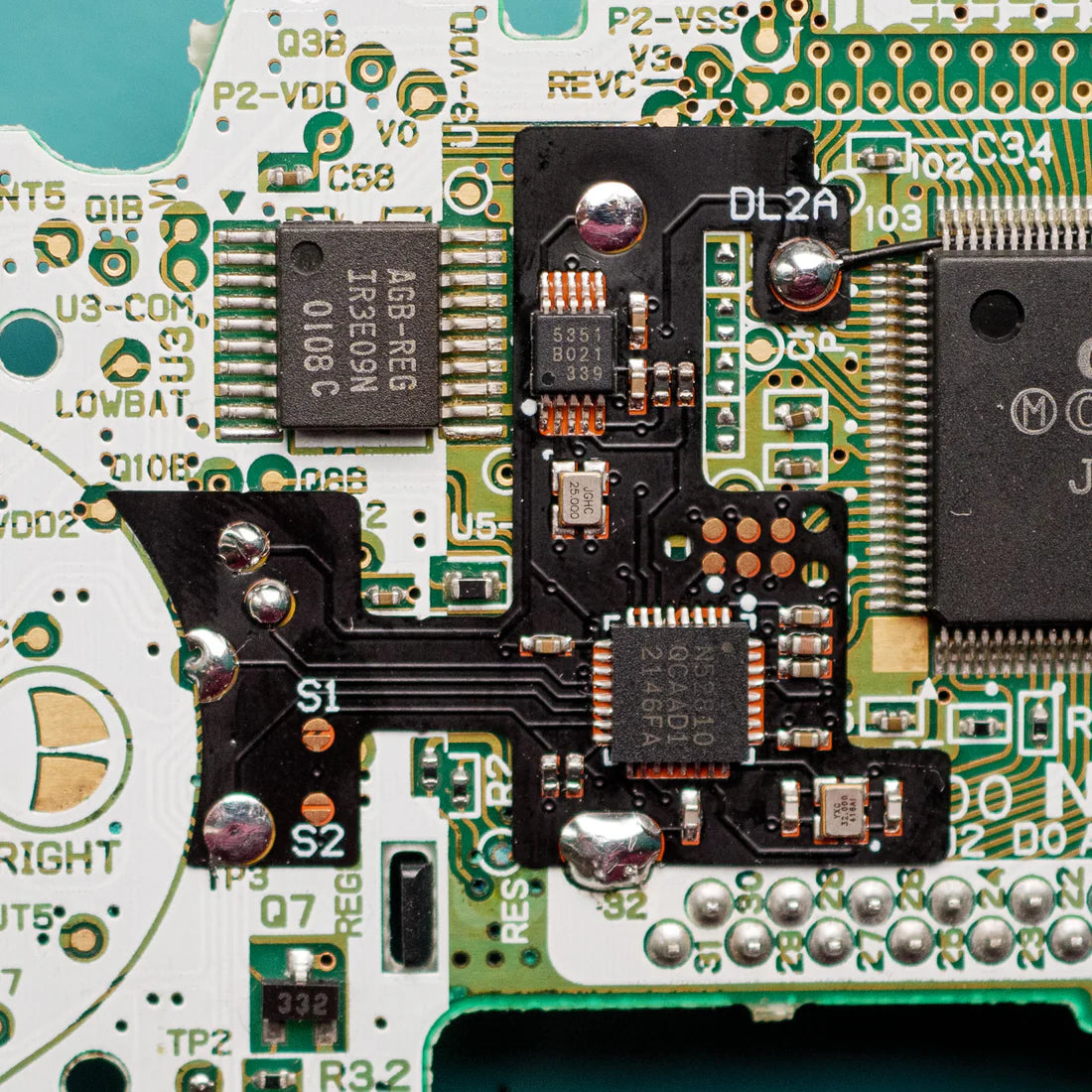

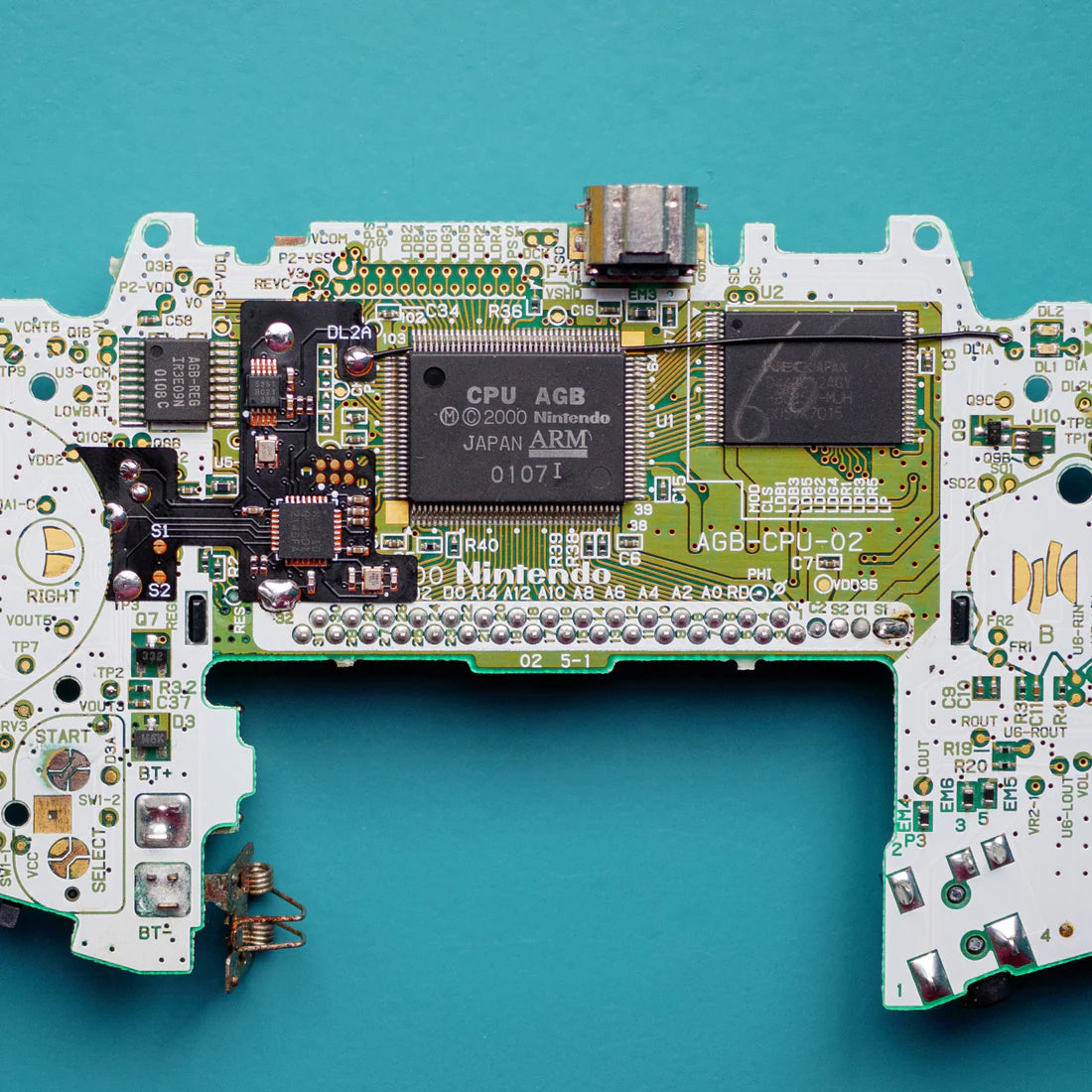

    • Install the flex as per photos.  Solder the points shown within the pink circles (total of 6 solder points).  It is recommended to use flux for this step.
    • OPTIONAL: Run and wire between the flex and test point DL2A (both shown inside the yellow circles).  This will make the power LED blink faster/slower when over or underclocking.

  • Speed Limiting

    • Bridge solder jumper S1 to limit the speed to 150%.
    • Bridge solder jumper S2 to limit the speed to 130%.
  • Increase speed = Press Start and Up
  • Decease speed = Press Start and Right
  • The regular install has a maximum speed of 170%.  This is suitable for the stock LCD, Funnyplaying v2 or Hispeedido v2 (non-laminated) kits.
  • If using the Hispeedido Laminated v5, bridge solder jumper S1 to limit the speed to 150%.
  • If using Funnyplaying 3.0 Inch Laminated, bridge solder jumper S2 to limit the speed to 130%.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Eris
Works great!

Had a small issue installing where S2 wasn't connected properly and my start button wouldn't work, but wicked away some solder and everything started working again.

Other than that, installation was a breeze and it works great! Been playing Pokemon Brown on my EMS 64MB Smart Card and it handles wonderfully at max clock rate.

BTW using this with the HISPEEDIDO V5 Laminated kit there's some *very* minimal screen tearing at max clock. Otherwise no issues pushing this combo to the max.

J
Justin L.
Easy installation!!

As a semi novice with soldering this kit was incredibly easy to install and works as intended. Some games don't handle being overclocked to the max but in every instance I tried this worked to overclock or underclock in order to speed up or slow down the game play. I would definitely order again. I used the overclocker running games from a Legit Krizzz Everdrive mini and everything worked.
