CleanJuice DMG XL Rechargeable Battery Mod - RetroSix

SKU: CDX2009
Price
CHF 30
In stock! Usually ships within 1-2 business days.
Pickup available at 519 Davisville Rd.

Usually ready in 2-4 days

View store information

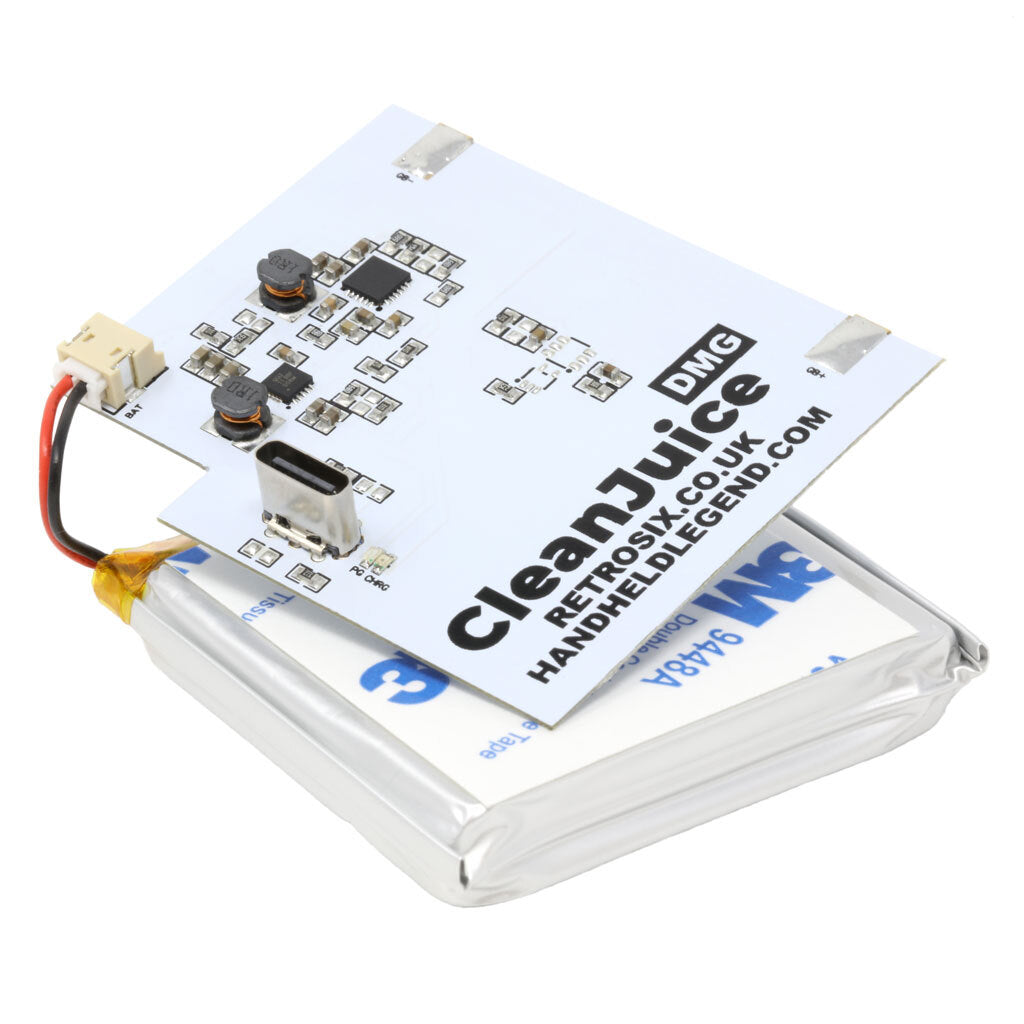

Designed and tested in the UK by a reputable modder and builder, the RetroSix/Hand Held Legend CleanJuice for Game Boy is the ultimate upgrade to your console. Adds 11.1 watts of power (compared to 2 watt for the largest AA batteries available) giving you almost 6 times the game time!

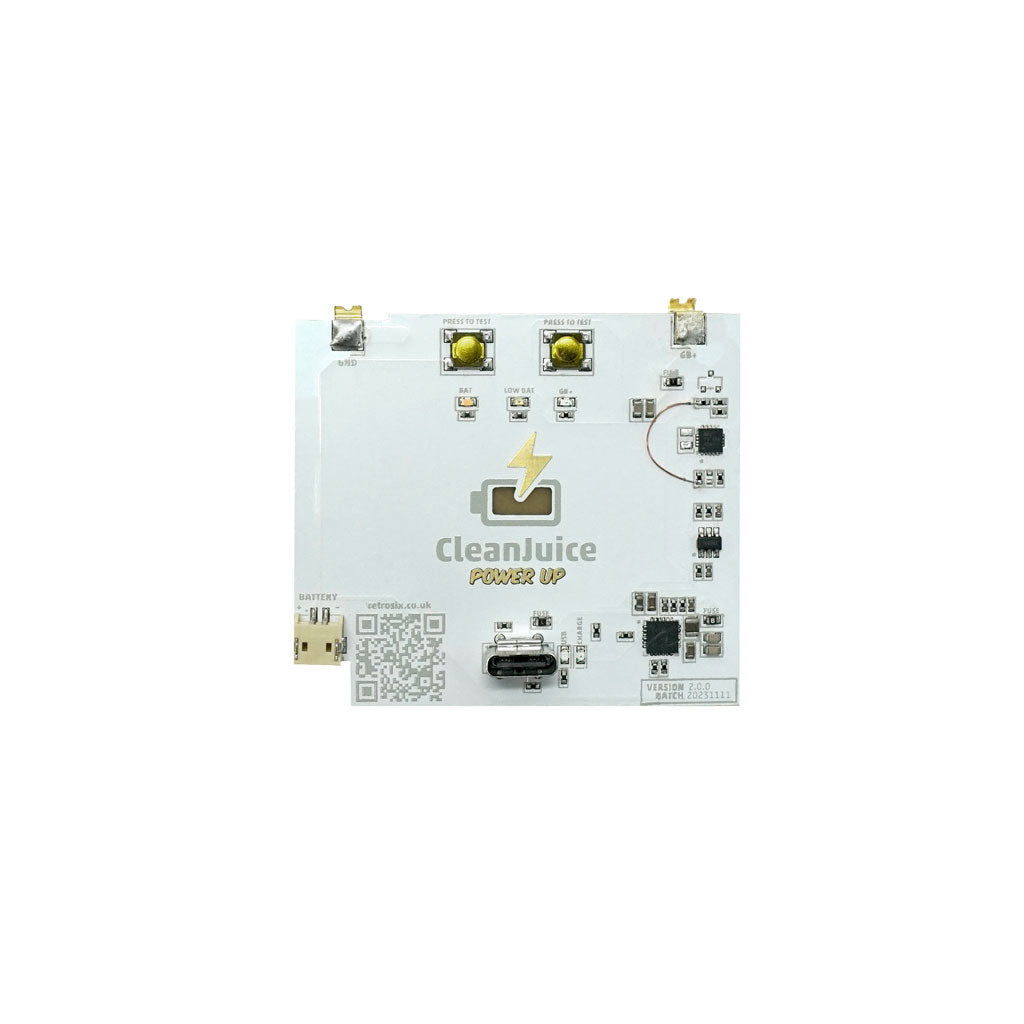

*Current version of board is black.

FEATURES:

  • Charge at any time using a Power Delivery (PD) compliant USB-C cable
  • Connect battery to CleanJuice board (only fits in one way)

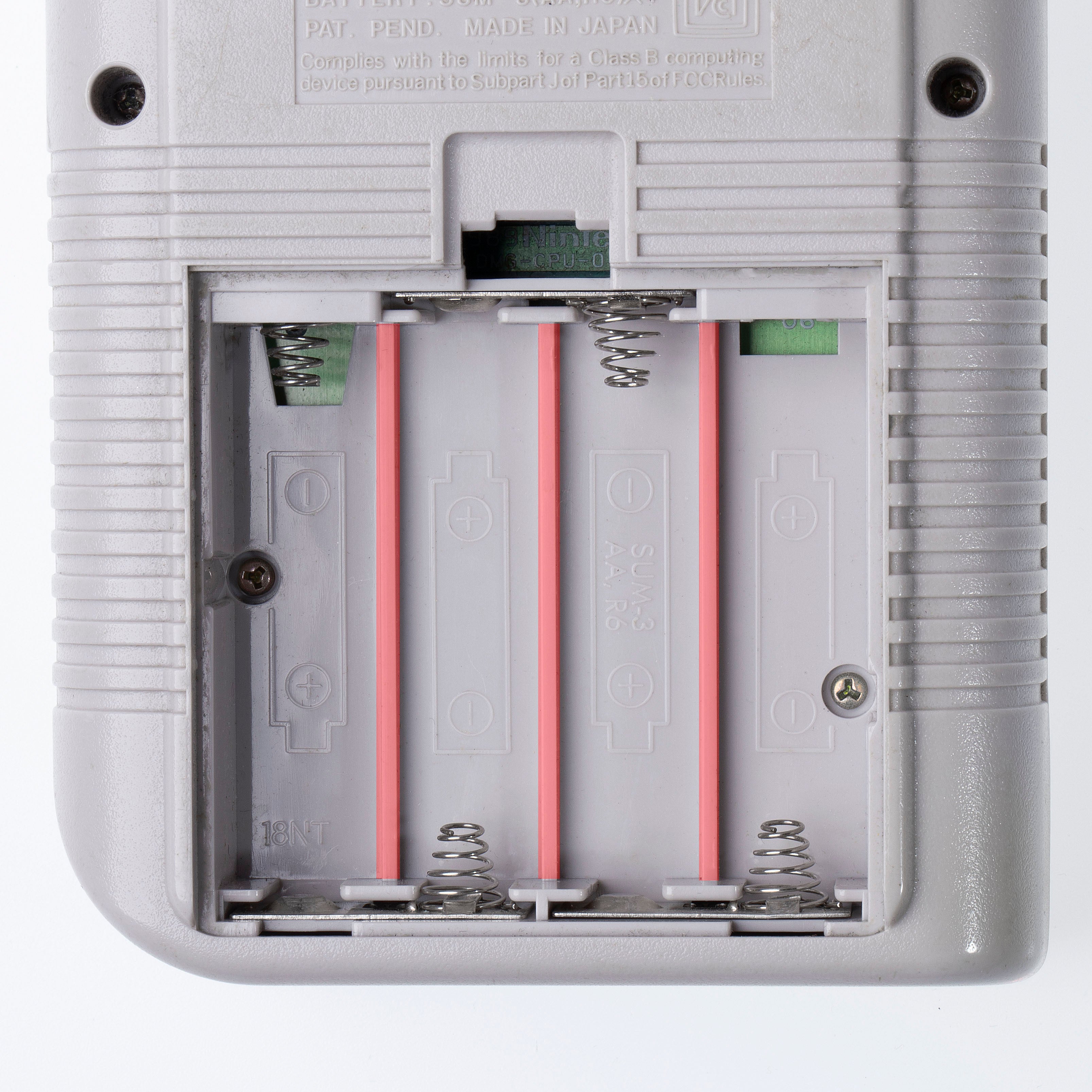

  • If your shell is a RetroSix IPS modified shell, no need to do anything. If it's regular shell, you will need to trim the 3 battery line stumps at the bottom of the battery compartment where the AA batteries usually go so that its flat.
  • Place battery into shell with the wire coming out at the bottom left corner, and the battery pushing the top left spring in.
  • Push the battery down at the bottom end.

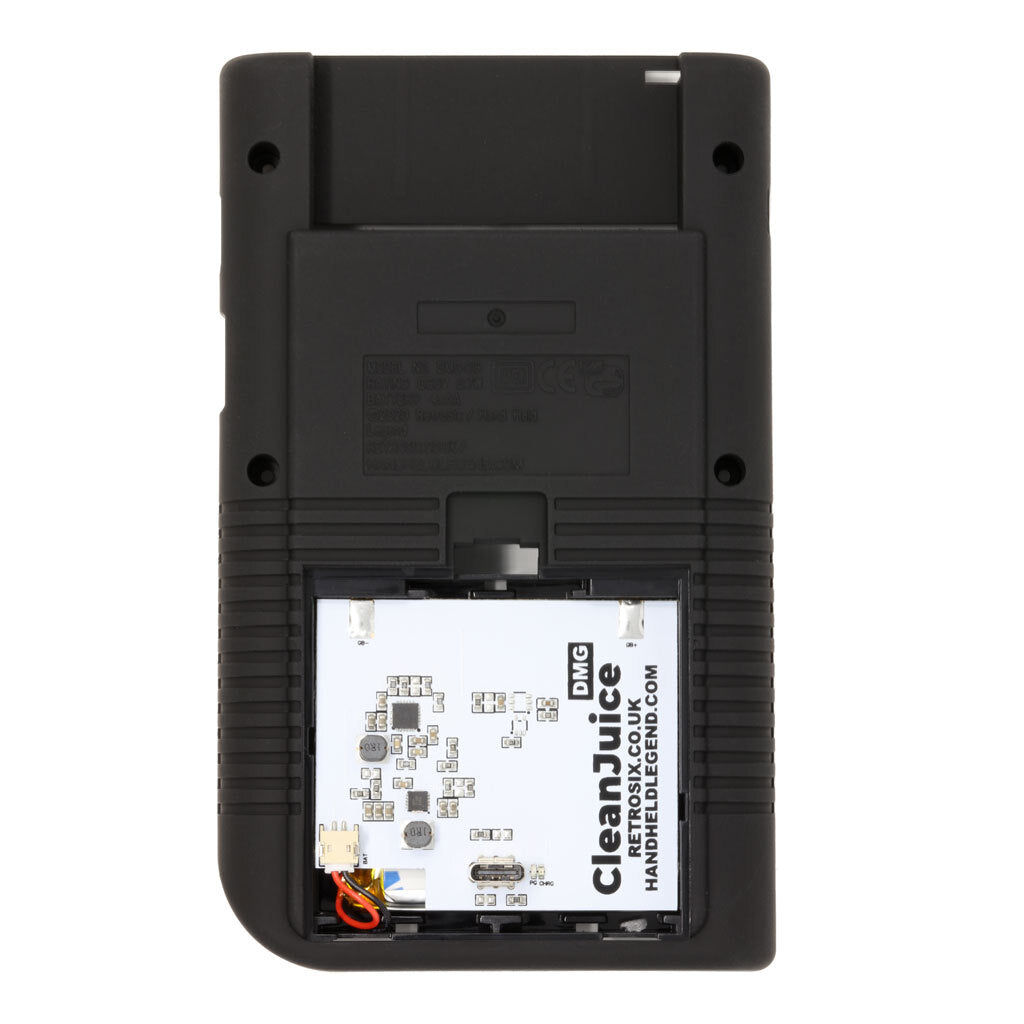

  • Place the CleanJuice board on top of battery and push the springs down to make contact with top battery springs. The other 3 battery springs need to be removed

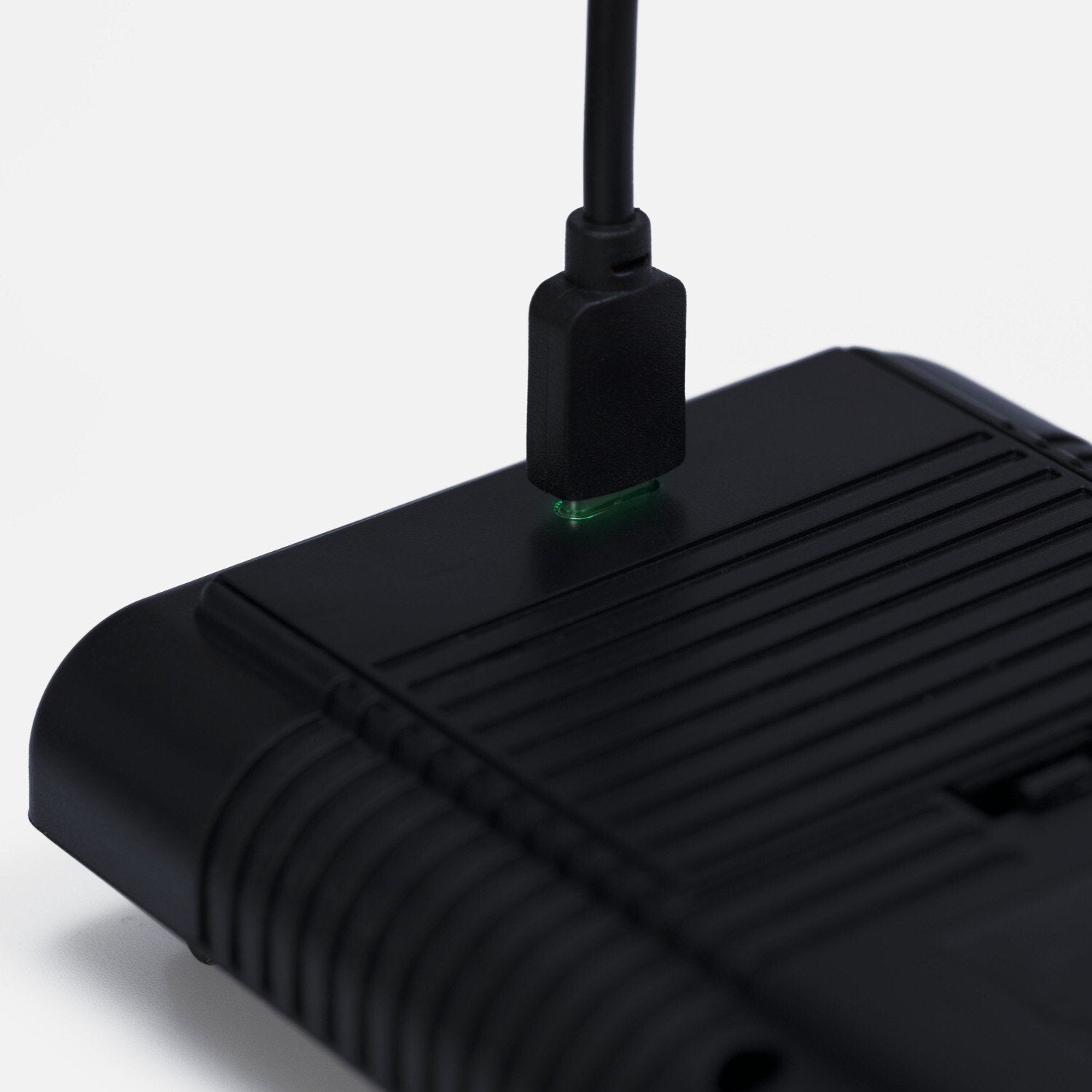

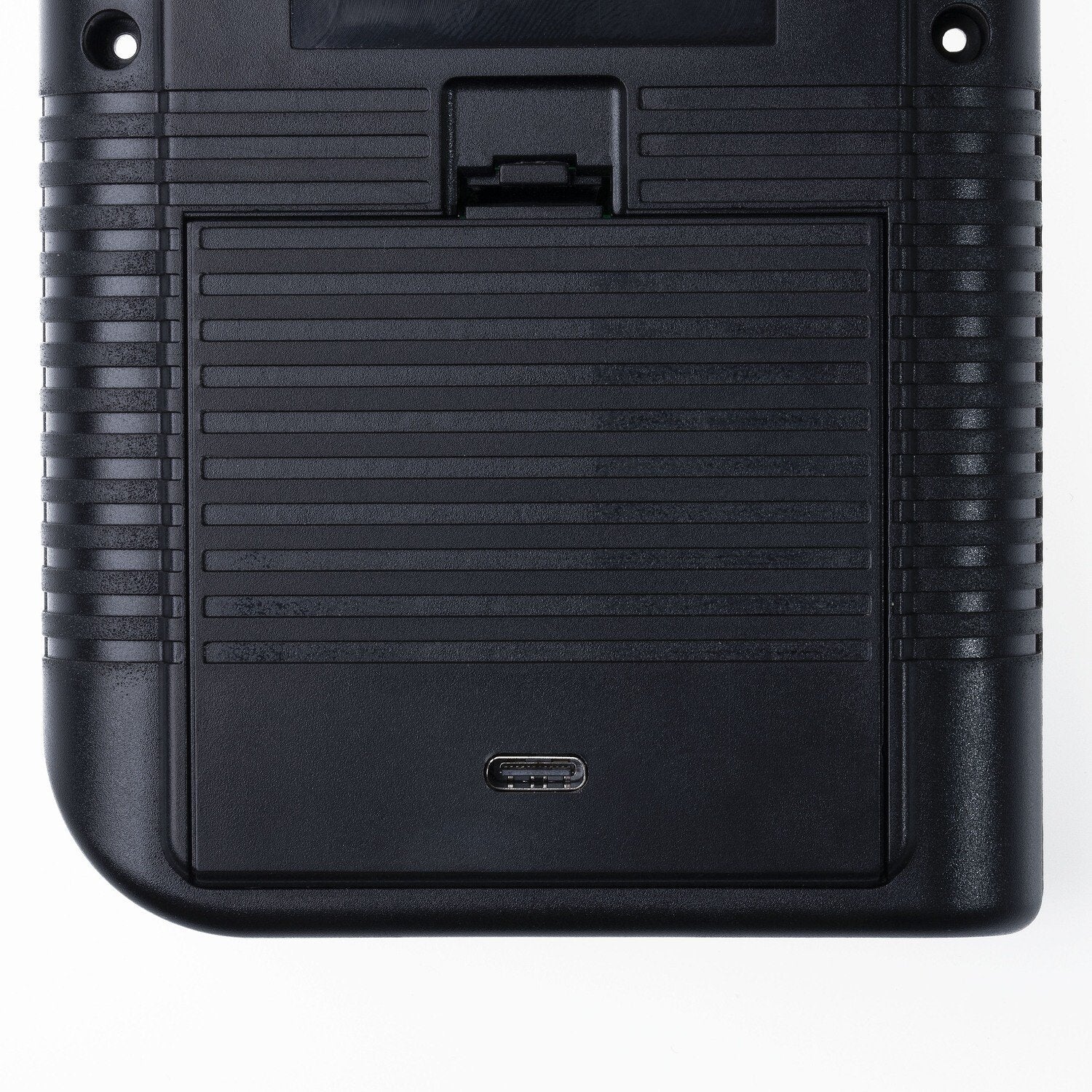

  • Pair with a USB-C battery cover for the DMG (sold separately)
  • You can also cut a hole for the USB-C port using a 4mm drill bit and drill 3 holes in the center of the battery cover as shown in the image.
  • Put the back cover on the console, and you are ready to go.
  • Give the CleanJuice a full charge and enjoy hours of gaming! Check out this article to see how long it could last.

Light Indicator Key:

  • If the PG labeled light on the board is on, this means the USB cable is providing power to the system. This also means you can power your console from the USB without draining the battery - plug and play option.
  • If the CHRG labeled light on the board is on, this means the USB is charging the battery. When it goes off, the battery is fully charged.
  • Both indicator lights will be on when module is charging. When module is fully charged, only the PG light will remain.
  • If you connect a USB cable and the PG light does not turn on, your cable or power supply are faulty.

INCLUDED:

  • 1x Lithium ion rechargeable battery
  • 1x Cleanjuice PCB

PAIRS WELL WITH:

NOTES:

DOCUMENTATION:

WARNINGS:

Risk of fire if improperly charged or if battery is punctured. Only use protected power sources along with power delivery (PD) compliant cables and chargers. Using uncertified hardware may result in more than 5v being delivered to your CleanJuice product. Damage caused by unsupported hardware voids our return/exchange policy.
Examples of supported chargers:

  • Nintendo Switch charger
  • MacBook Pro type C charger
  • Samsung type C charger
  • Google Pixel charger
  • USB A to USB C cable (certified only!)
