Gamecube USB-C Power Supply - Robot_Retro

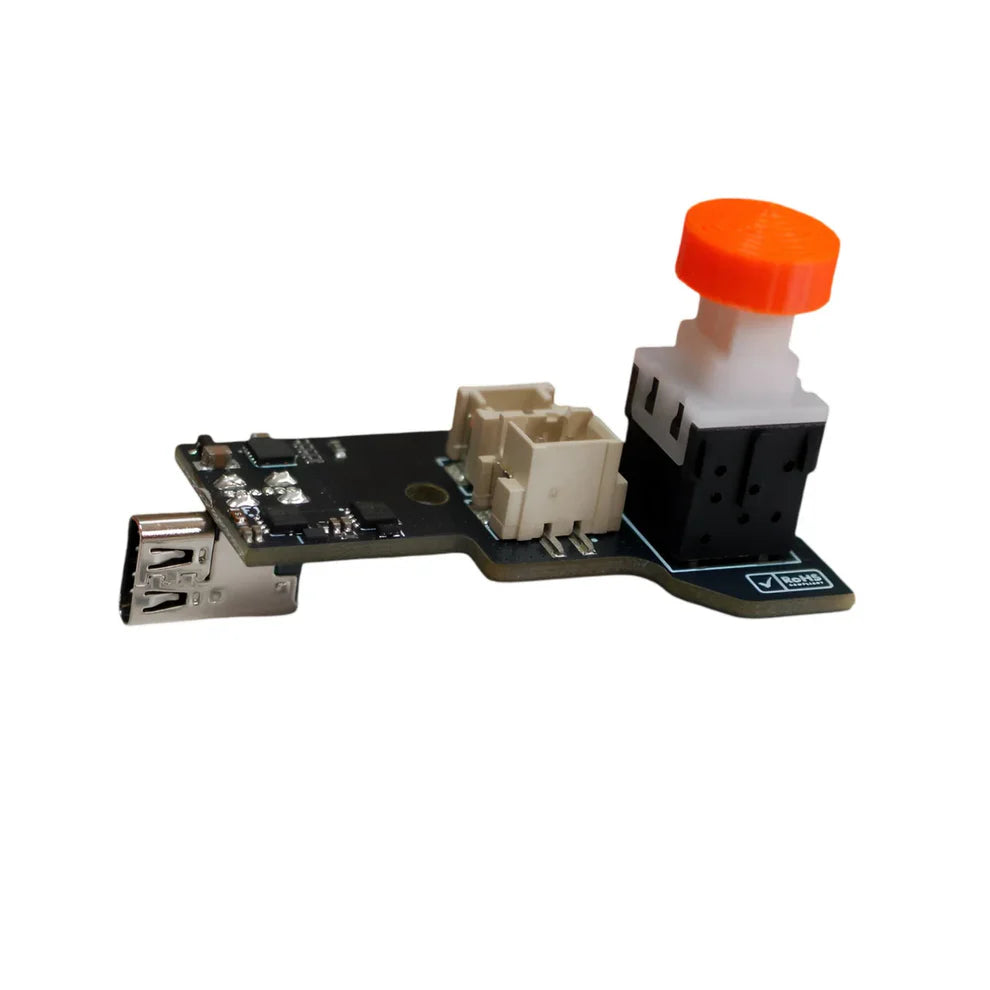

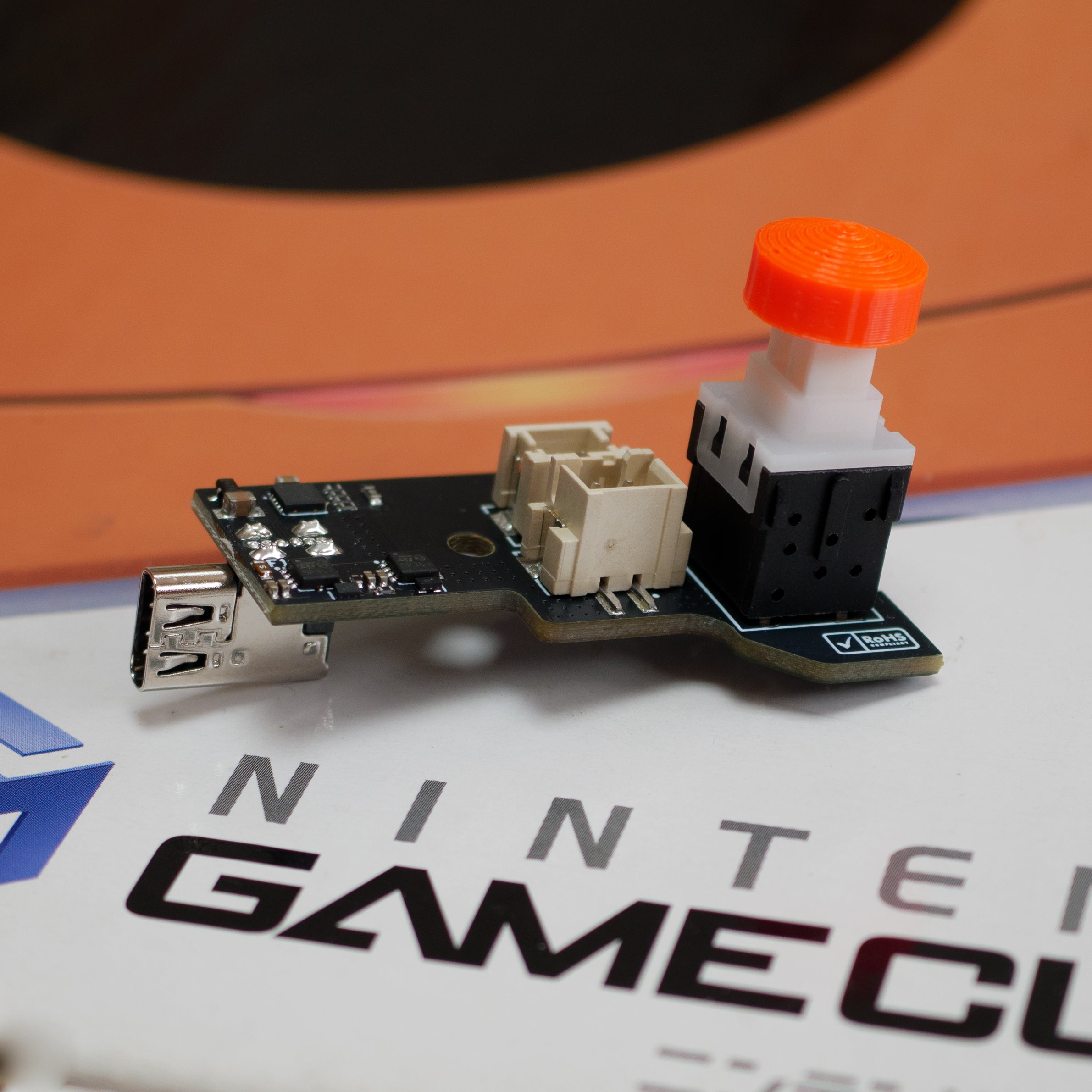

Upgrade your Nintendo GameCube with Robot_Retro's USB-C Power Supply, a modern, reliable, and compact replacement for the bulky original power brick. This plug-and-play internal board uses USB-C Power Delivery (PD) to bring clean, efficient power to any GameCube model—NTSC, PAL, or Japanese.

• Drop-in USB-C PSU Replacement - No soldering or wiring required—simply install and play.
• Universal Compatibility - Works with all Gamecube models (PAL, NTSC, Japanese), Picoboot, RetroGEM, Blue Retro and more.
• Powered by USB-C PD (Power Delivery) - Compatible with 12V PD chargers. Most 30W and above USB-C adapters will work, including models from Anker, Dell and uGreen.

INCLUDED:

INSTALLATION:

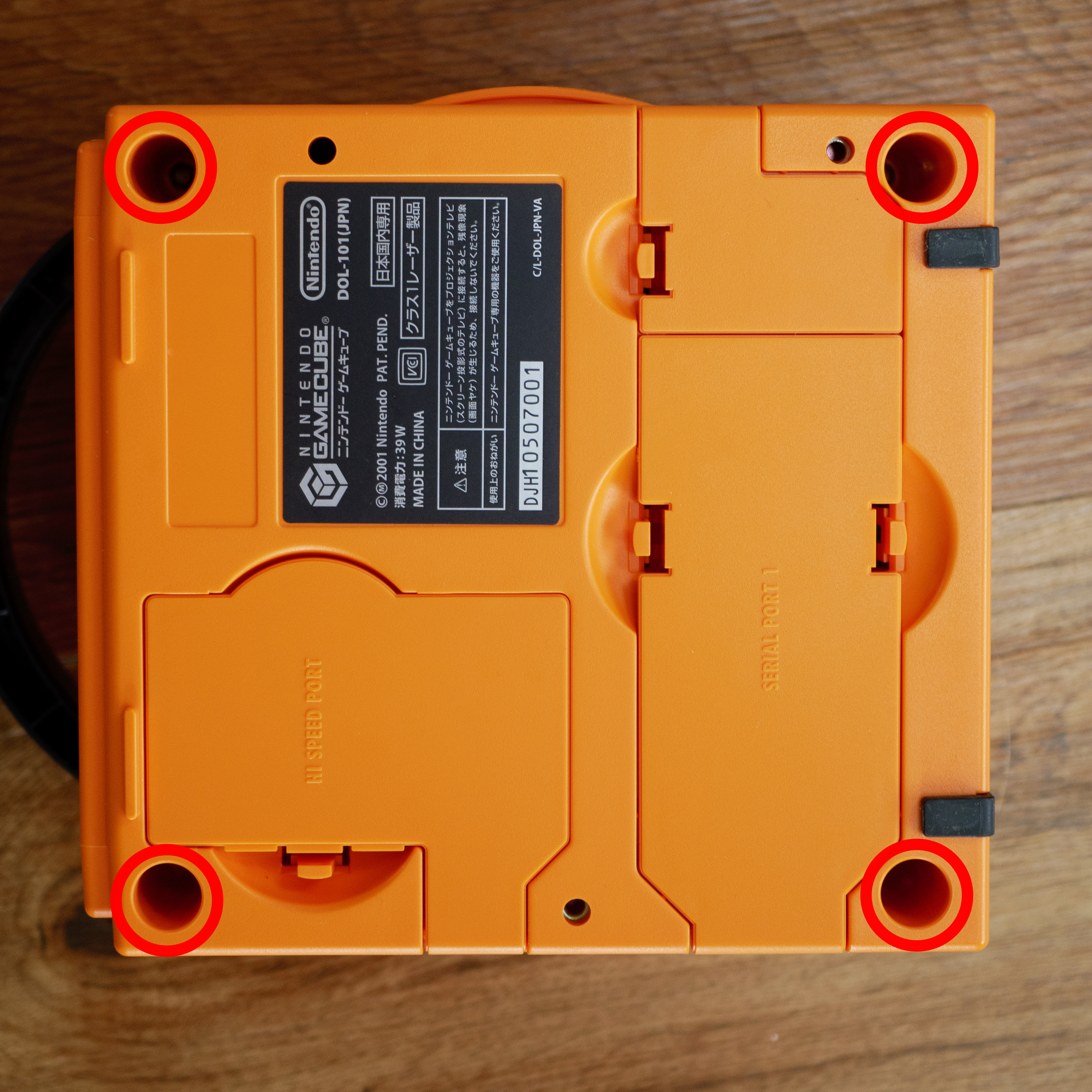

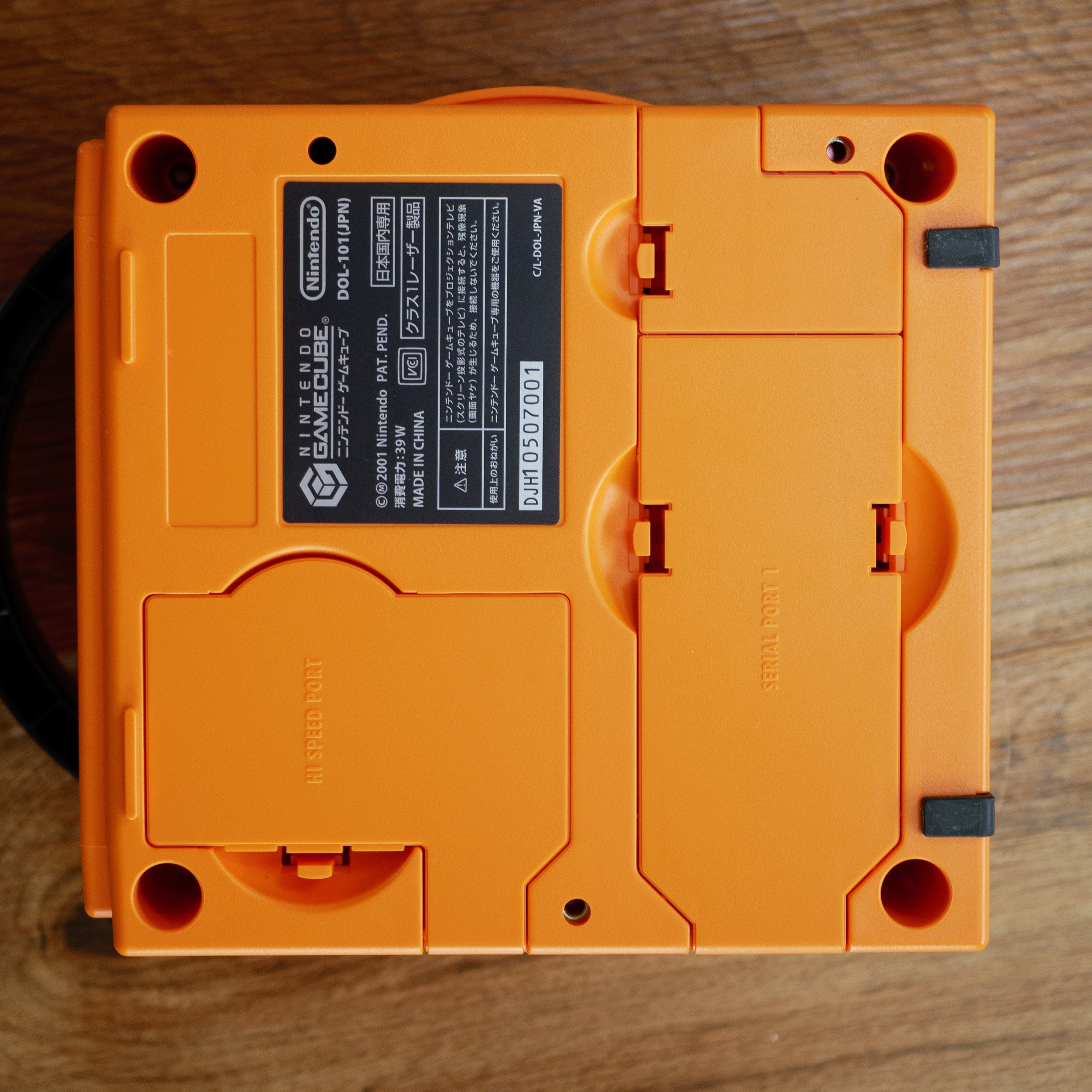

• Unscrew the four screws on the bottom of your gamecube (use a 4.5mm gamebit driver).  See photo.

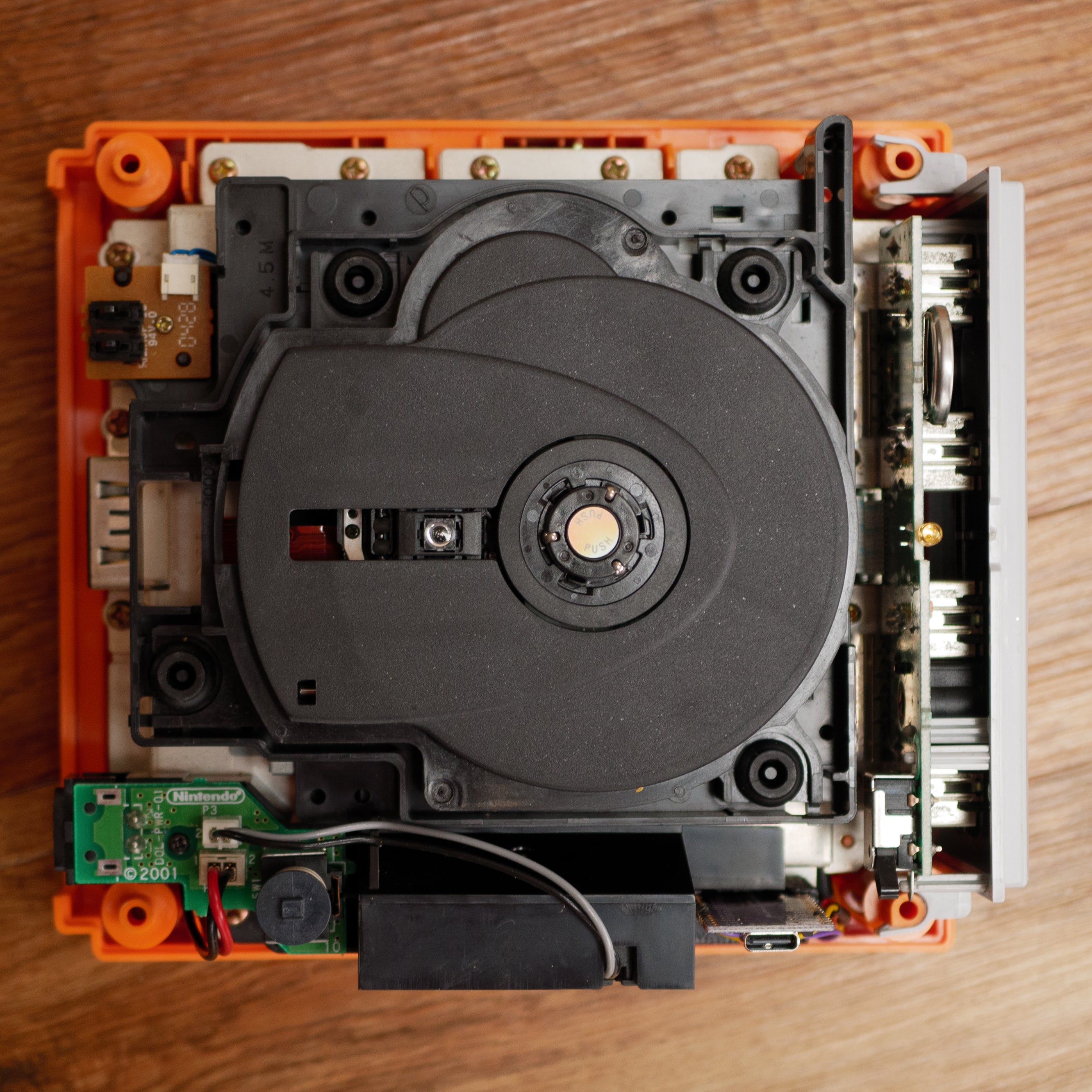

• Remove the top lid and unscrew the single power board screw (phillips head).  See photo.
• Install the provided 3D-printed spacer.  Please note, this is a snug fit and will just snap into place.

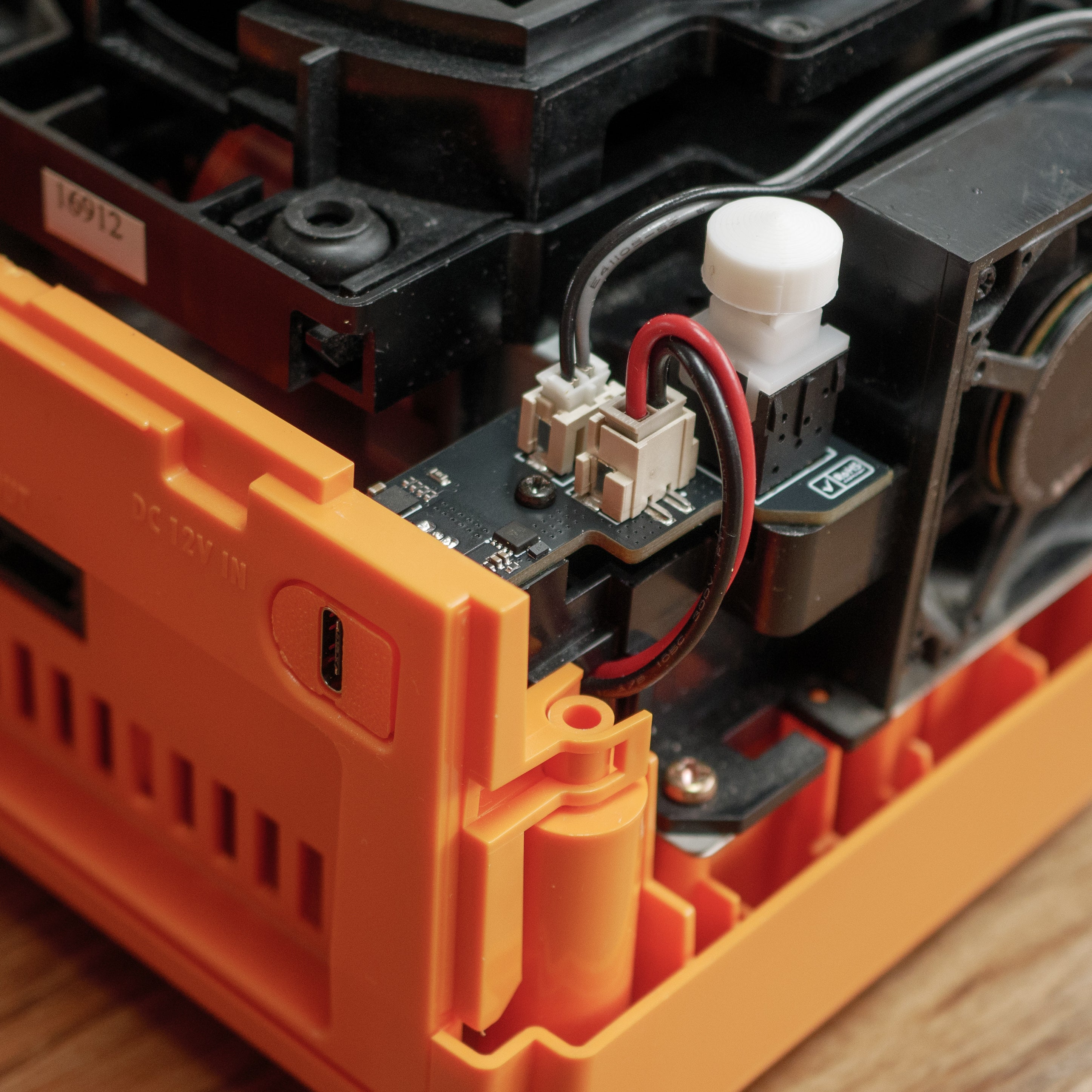

• Fit the robot_retro board in the same position as the original and replace the power board screw.
• Reassemble your console.


DOCUMENTATION:

• Gamecube USB-C 3D Printed Spacer

NOTES:

• Created by Robot_Retro
• Recommended: uGreen Nexode Mini 30W for optimal quality and value.
