Upgrade your Game Boy Color with the HISPEEDIDO 2.45" Drop In Backlight LCD Kit. No need for soldering or shell trimming. Enjoy the same display size as the original screen with 9 to 1 pixel integer scaling. Customize your gaming experience with 8 color modes and 15 brightness levels. The built-in OSD menu allows for easy image adjustments.

FEATURES:

  • Doesn't Require Soldering or Shell Trimming. Cartridge pin trimming may be required. Please see install guide.
  • Same display size as the original screen.
  • 9 to 1 pixel Integer Scaling.
  • Built-in OSD Menu.

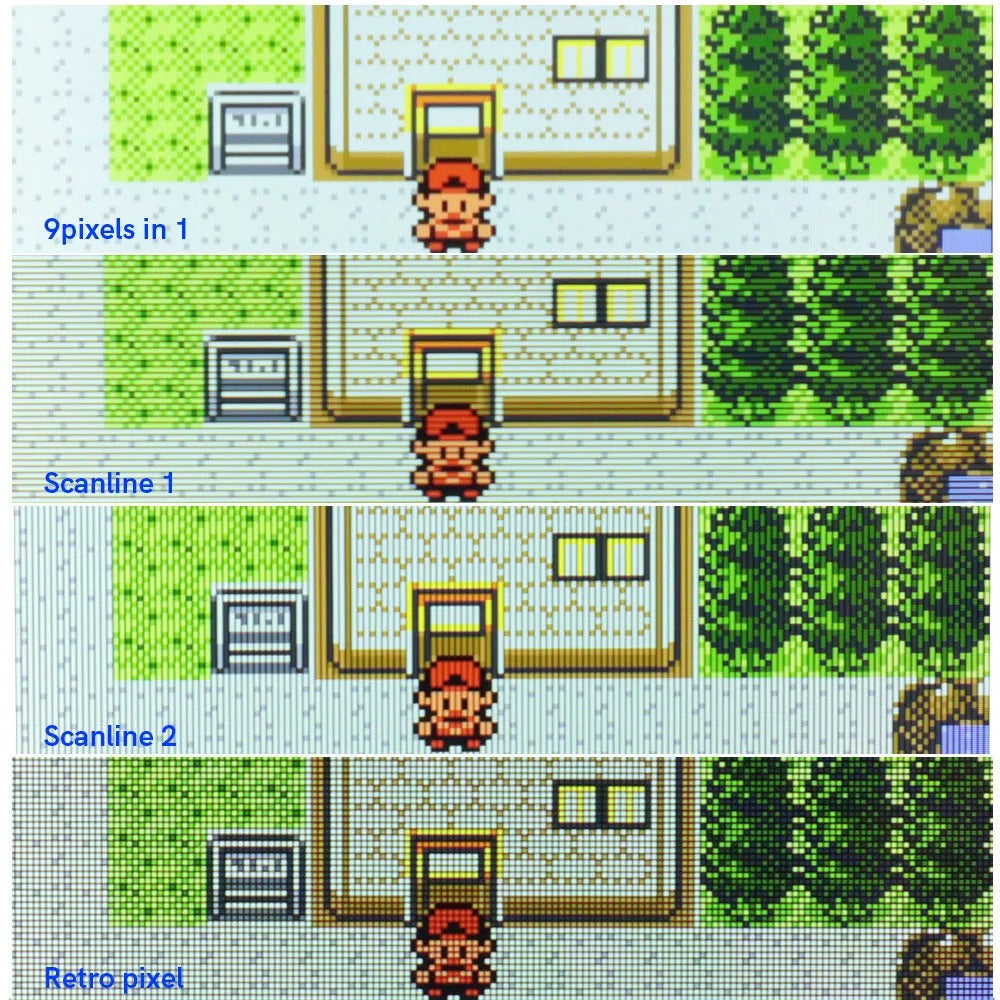

  • Retro pixel Effects
  • 15 brightness levels.
  • 8 color modes.
  • Image position adjustable in the OSD menu.

INCLUDED:

  • 1x LCD
  • 1x PCB with touch sensors
  • 1x Ribbon
  • 3x Wires
  • 1x Insulation Film
  • 1x Adhesive

PAIRS WELL WITH:

DOCUMENTATION

NOTES:

  • OSD can be operated with touch sensors (no soldering required) or button presses (requires soldering).

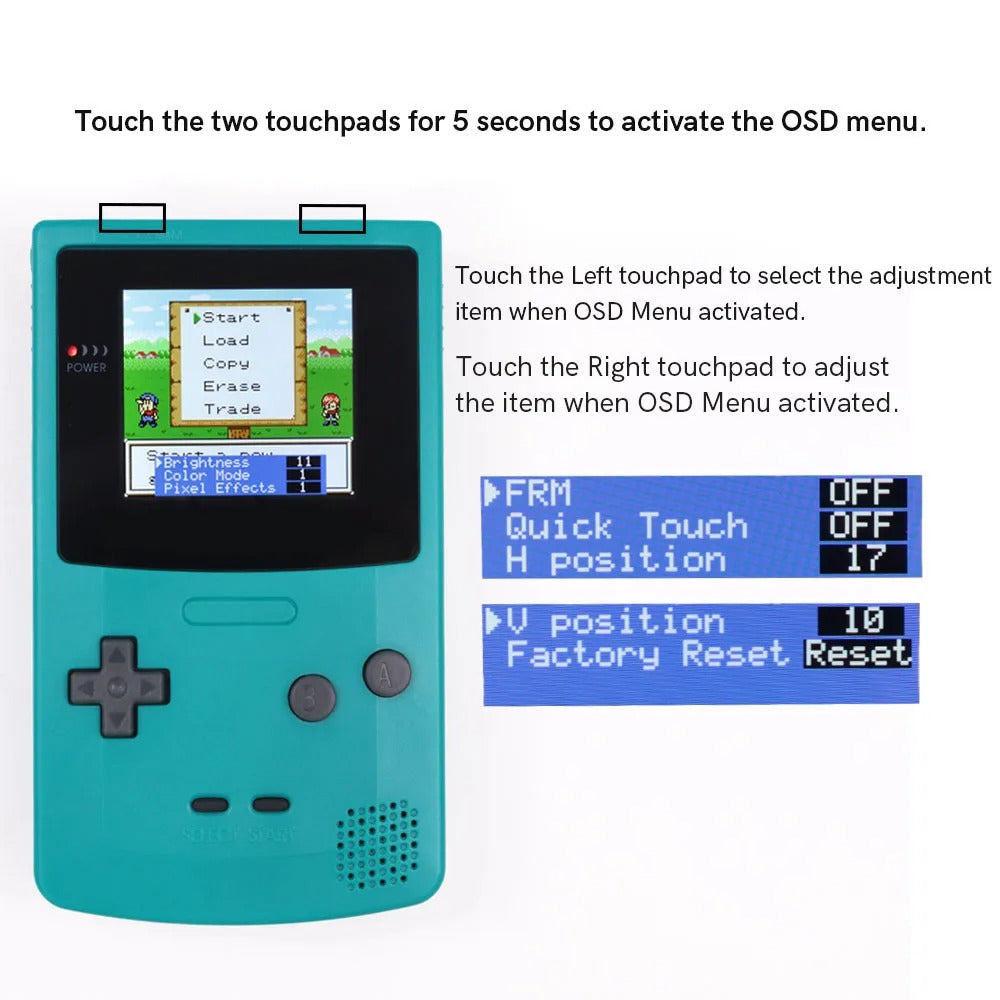

  • Touch the two touchpads for 5 seconds to active the OSD menu.
  • Touch the left touchpad to select an option when OSD Menu activated.
  • Touch the right touchpad to adjust the option when OSD Menu activated.

WARNINGS:

  • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
  • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
  • Damage to console or LCD may occur if you do not trim the cartridge port pins. Exercise caution when trimming pins, wear eye protection to protect from pin debris when cutting the metal. Damage caused by these pins are not covered under our return or exchange policy. Trim the pins of your Gameboy's cartridge slot flat so that they don't interfere with any parts of the kit. We also recommend placing some Kapton tape over the trimmed pins to prevent any shorts.

Customer Reviews

Based on 4 reviews
50%
(2)
25%
(1)
0%
(0)
0%
(0)
25%
(1)
B
Bob
Upgraded two GBCs with this, they're both looking great!

I upgraded my wife and my GBCs with this. They were easy to install. I already had a glass screen lens that I didn't want to remove, so I had to do something a little different with the adhesive. I cut the adhesive into three thin strips and applied them to the shell window (top, left, and bottom).

M
Michael H.
Not Bad

I have ordered two of these. The first one was fine and worked great. The second one has an issue with the sensors being too sensitive and sometimes automatically changing the screen options. HHL offers the solution of using kapton tape over where the sensors are soldered to the screen's board.

They do fit in original shells fine.

A
Anthony G.J.
Wasted $60 for a broken product.

The ribbon cable that connects the screen To the pcb board was broken would fit loose in the holder not allowing it to get a firm grip on the ribbon cable. Because of this I couldn’t do anything with it.

C
Clyde W.
Loving my Gameboy Color again!!

My Gameboy Color was finally dug out of a box and needed a new display. So I went ahead and ordered the "Game Boy Color 2.45" Drop-in IPS LCD Backlight Kit with OSD - Hispeedido." I have ordered and installed a couple of display screens for/on my Gameboy DMG, and Gameboy Advance, so I had high expectations based on my experience with those. Let me tell ya, it far exceeded my expectations in every way! Looks amazing! I love my Gameboy Color again!
