Game Boy Color Q5 IPS LCD HDMI HD TV Output Mod Backlight Kit with OSD - Hispeedido

Play your Game Boy Color on your HDMI enabled TV! This IPS kit is Q5 windowed and includes an exclusive micro HD adapter to output your game to a modern TV. This is an advanced mod, so please review the installation procedure before purchasing!

FEATURES:

• Connects via micro HD adapter and HDMI cable to display your game right on your TV.

• Q5 Display, 25% larger than the original. RetroSix prestige shell or pre-cut shell recommended. Original shell modification required!

• Built in OSD menu to adjust many features including color modes, battery indicator, and TV modes.

• Complete with the similar features to the standard Q5 model.

• Built in 5 retro pixel effects and 32 color options for the Game Boy Color Logo.

• Purchase Q5 glass lens with clear text logo cutout separately to display the GBC logo in different colors.

• Trimming required on all shells for this feature (see install documentation).
• Has DMG style (Black/white) color mode.

• 3 aspect ratio options in TV display.

• 720P HDMI Output.
• Shell modification required for the micro HD port to sit properly.

• On screen controls allow you to move the display window for perfect centering.

• Change brightness and IPS color with touchpad controls.

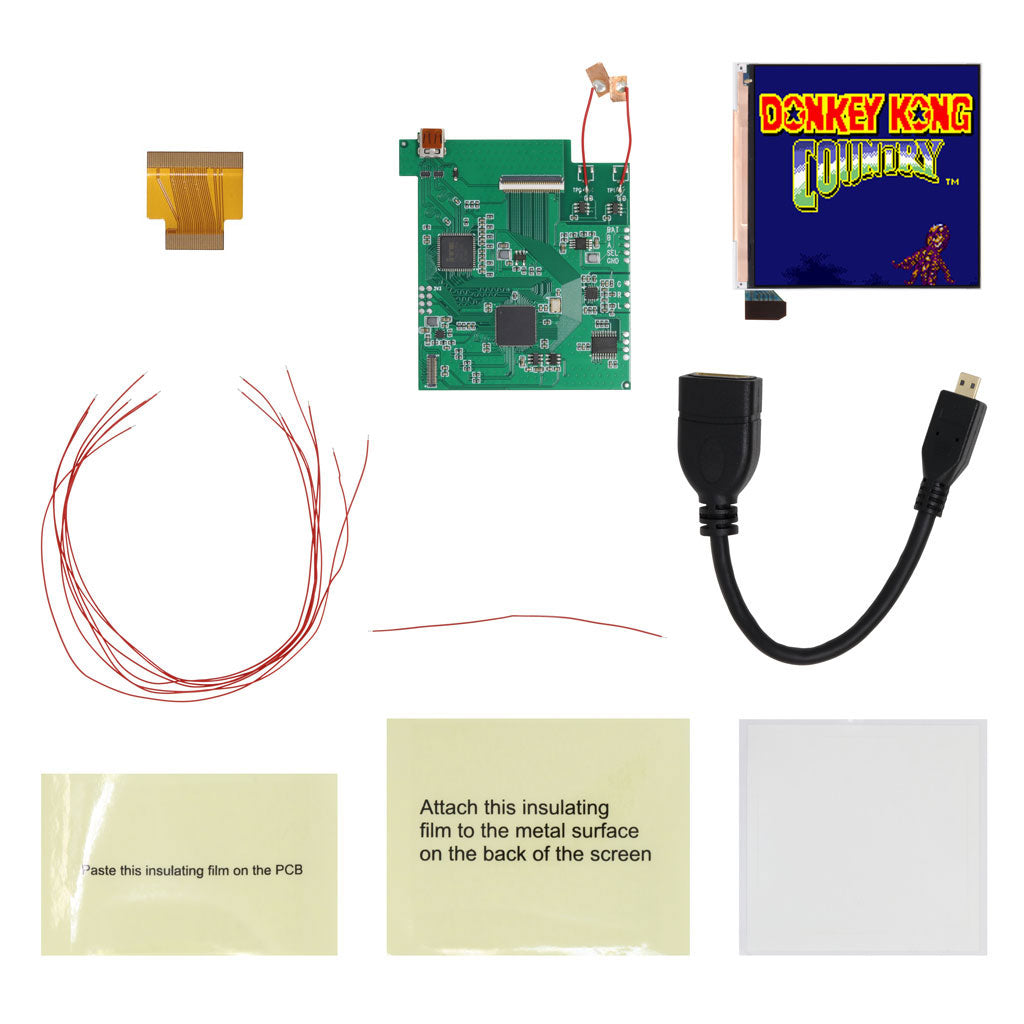

INCLUDED:

• 1x Q5 IPS LCD
• 1x PCB with micro HDMI port and two pre-soldered touch sensor wires
• 1x Adhesive
• 2x Insulation films

• 1x Ribbon
• 8x Wires
• 1x Micro HDMI to HDMI adapter

FUNCTIONS:

• To switch pixel grid modes, hold down touch sensor for color modes.
• To enter the OSD menu, hold down touch sensor for brightness controls.

PAIRS WELL WITH:

• Q5 IPS Glass Screen for Game Boy Color
• Game Boy Color Prestige IPS Ready Shell

• Game Boy Color CleanPower Regulator

• Game Boy CleanAmp Pro Audio Amplifier


DOCUMENTATION:

• Install Guide
• Install Video - NOTE: Please refer to install guide before using the video. Guides will have very important information and steps needed that the videos may lack.
• How to test your LCD kit
• Screen alignment/adjustment instructions
• Shell Trim for OEM and non-IPS modified shells
• Shell trim for Prestige IPS ready shell

NOTES:

• This kit no longer includes the Black Q5 glass lens with logo cutout/clear. Please purchase Q5 Lens with Clear Text separately. You will want one of the 'Clear Text' variants to take advantage of illuminated Game Boy Color logo option.
• After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.

WARNINGS:

• Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
• Damage to console or LCD may occur if you do not trim the cartridge port pins. Exercise caution when trimming pins, wear eye protection to protect from pin debris when cutting the metal. Damage caused by these pins are not covered under our return or exchange policy. Trim the pins of your Gameboy's cartridge slot flat so that they don't interfere with any parts of the kit. We also recommend placing some Kapton tape over the trimmed pins to prevent any shorts.
• *Soldering the BAT wire is required for operation of this kit. Soldering this wire only will not void the return policy.
