Upgrade your Game Boy Pocket (GBP) with this Game Boy Pocket IPS LCD Backlight Kit with OSD. IPS LCD's are characterized as having the best color and viewing angles available today. Take your old and outdated reflective pocket display to a bright and colorful upgrade your 10 year old self could only dream of.
FEATURES:
- Built-in 36 retro color combination
- Overall power consumption between 0.3 - 0.8W
- Accurate aspect ratio
- 11% larger than the original LCD.
- Contrast wheel brightness function
- On screen controls allow you to move the display window for perfect centering with vertical and horizontal adjustments.
- The On Screen Display (OSD) menu has functions for Brightness, Vertical Position, Horizontal Position, Pixel Effect, Battery Meter, Color Adjust, and Factory Reset.
- Use the Left touch sensor to change color, (Hold to turn on/off pixel effect) Use the Right touch sensor to change brightness, (Hold to turn on/off Battery display meter)
- "BAT" point on PCB is pre-tinned.
- Case modification and soldering required.
- Can be used with original (OEM) or aftermarket lens. However, original lenses may cut off a line of pixels around the image.

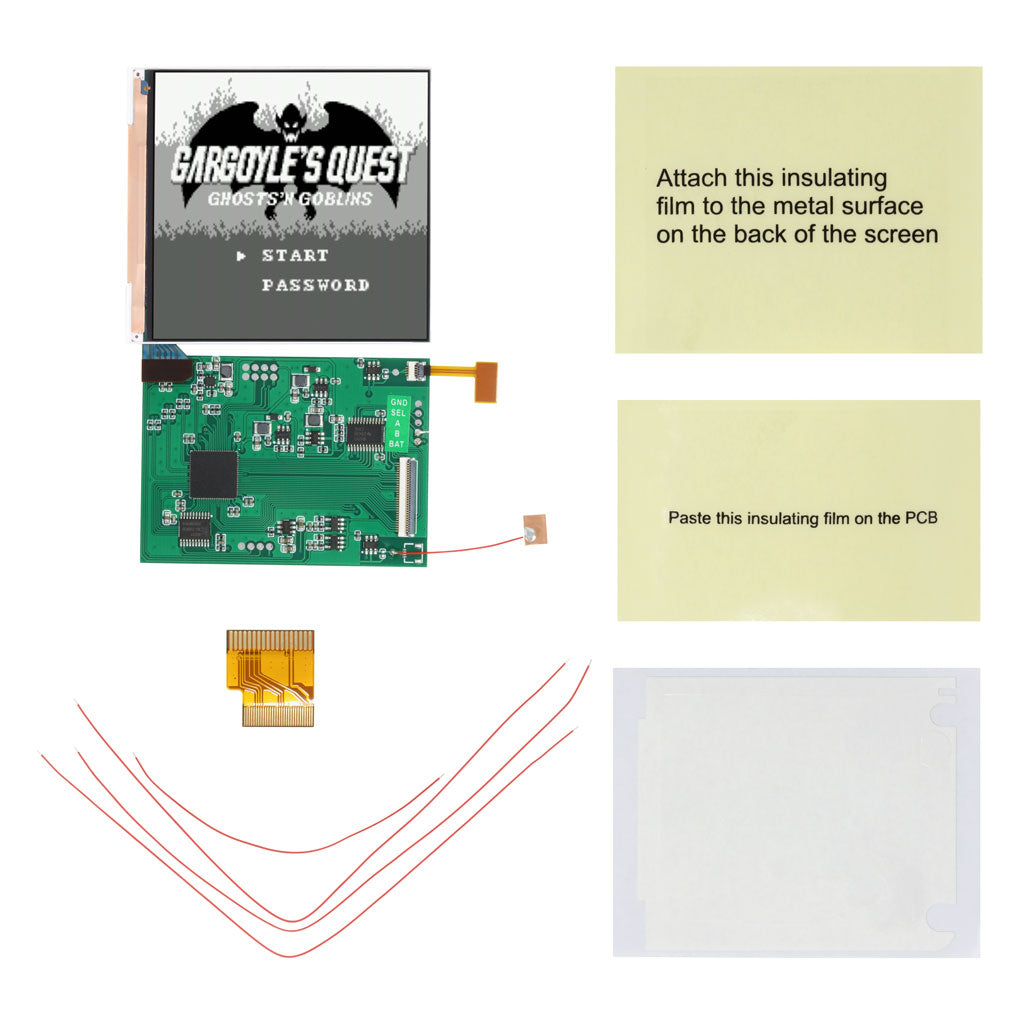

INCLUDED:
- 1 x Q5 IPS LCD
- 1x PCB with pre-soldered touch sensor wire
- 1x Ribbon
- 1x Touch sensor ribbon
- 1x Adhesive
- 2x Insulation film
- 4x Wires
USING THE OSD:
- Hold Select and press A + B simultaneously to access the OSD menu.
- Press A and B to scroll through the menu (A=Up, B=Down).
- Hold Select and press A to enter a function.
- Press A or B to set desired level (A=Right, B=Left).
- Hold Select and press A to save changes.
- Hold Select and press B to exit.
DOCUMENTATION:
- Install Guide
-
Install Video
- How to test your LCD kit - *Soldering is required to dry test this kit. Soldering the power wire in this case will not void the return policy.
NOTES:
- After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.
- OSD will not function without a game being inserted into the console.
WARNINGS:
- Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
- LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
