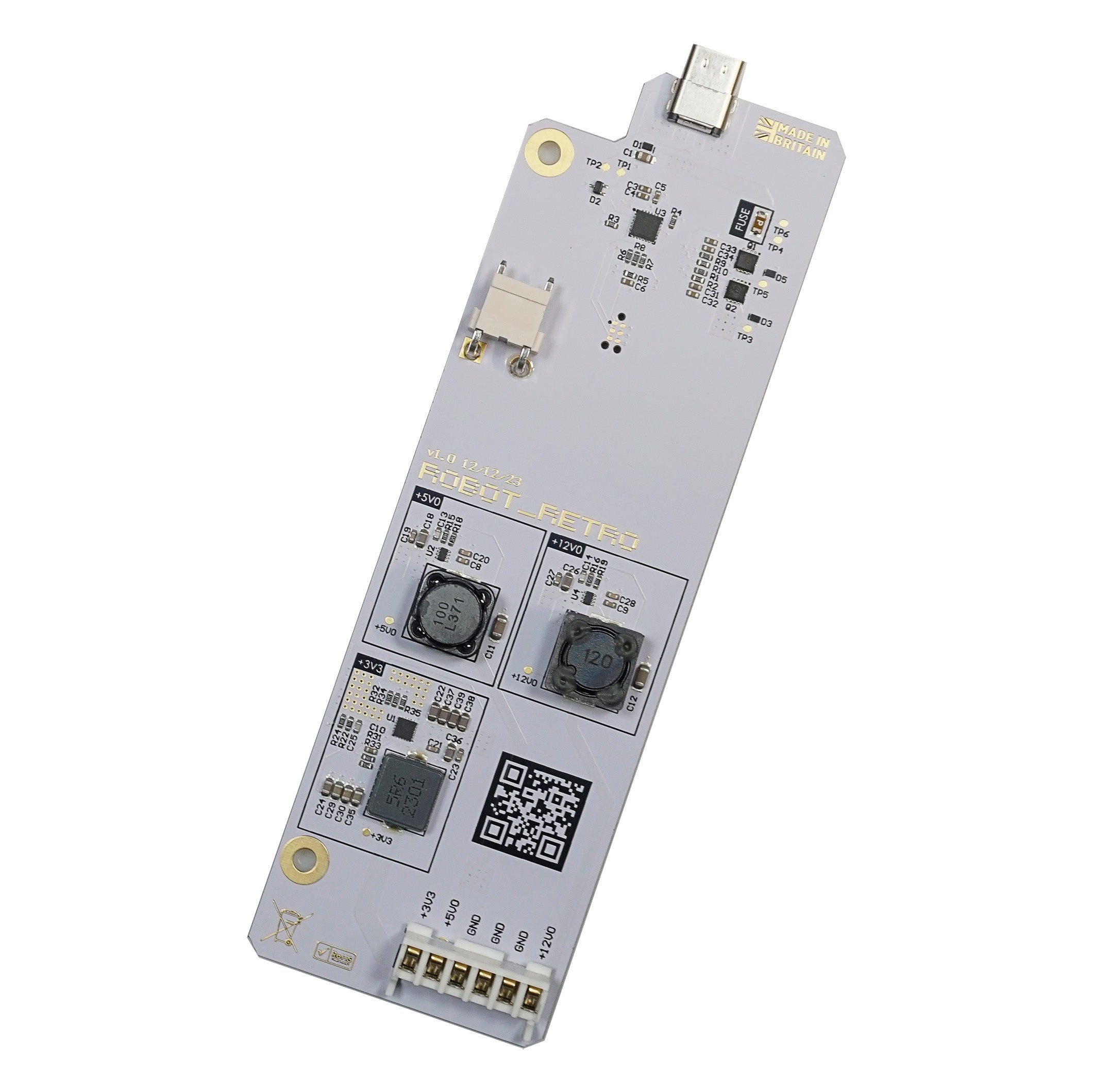

Upgrade your Dreamcast's power supply with the Dreamcast Replacement Power Supply. Compatible with all models, this efficient and safe solution is powered by a 15v or 20v Power Delivery USBC charger. With a 90-95% efficiency rate, low signal noise and heat, and no flashing LEDs, this drop-in solution is perfect for clear shells. Plus, the included 3D printed spacer allows for easy installation.
FEATURES:
- Powered from a 15v or 20v Power Delivery USBC charger. Most 30W charger USBC will work.
- Low signal noise and heat.
- Drop in solution. No soldering, wires or complicated install required.
- Works with all Dreamcast models (PAL, Japanese, etc)
- Works with GDEmu.
- V1.1 includes 5V and 12V fan headers. Note, the Dreamcast still needs a fan connected into the OEM port in order for the console to boot.
INCLUDED:
- 1 x Dreamcast Replacement Power Supply USBC Type C PCD
- 1x White Spacer
PAIRS WELL WITH:
DOCUMENTATION:
Installation:
- Unscrew the four bottom Dreamcast screws as shown in the photo.
- Remove the top lid and then remove the two power board screws (see photos).
- Fit the robot_retro board in exactly the same way as the OEM power board was removed.
- Fit 3D printer USBC spacer.
- Reassemble the console.
NOTES:
- After install if you are having power issues, please check your power supply and USB-C cables. Robot_Retro recommends this wall charger for the best power delivery.
