SaturnPSU Power Supply for SEGA Saturn Shenzhen Speed Sources Technology Co., Ltd.

SaturnPSU Power Supply for SEGA Saturn

Name: SaturnPSU Power Supply for SEGA Saturn
Brand: Shenzhen Speed Sources Technology Co., Ltd.
SKU: STR1000
Price: 413.39 NOK
Availability: InStock

413,39 kr

6 reviews

SKU: STR1000

Hand Held Legend

Quantity:

Pickup available at Hand Held Legend Usually ready in 2-4 days

Hand Held Legend

Pickup available, usually ready in 2-4 days

519 Davisville Road
Unit 102
Willow Grove PA 19090
United States

+12154213048

Install Guide

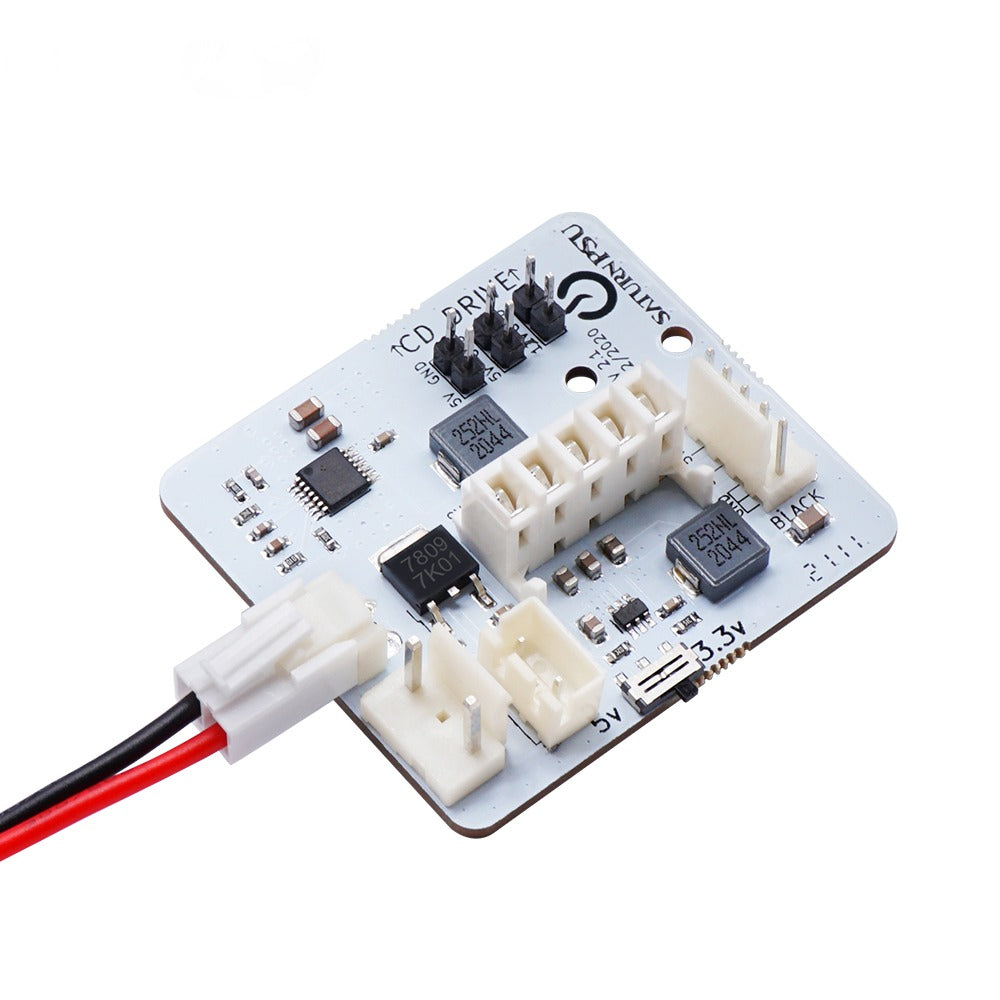

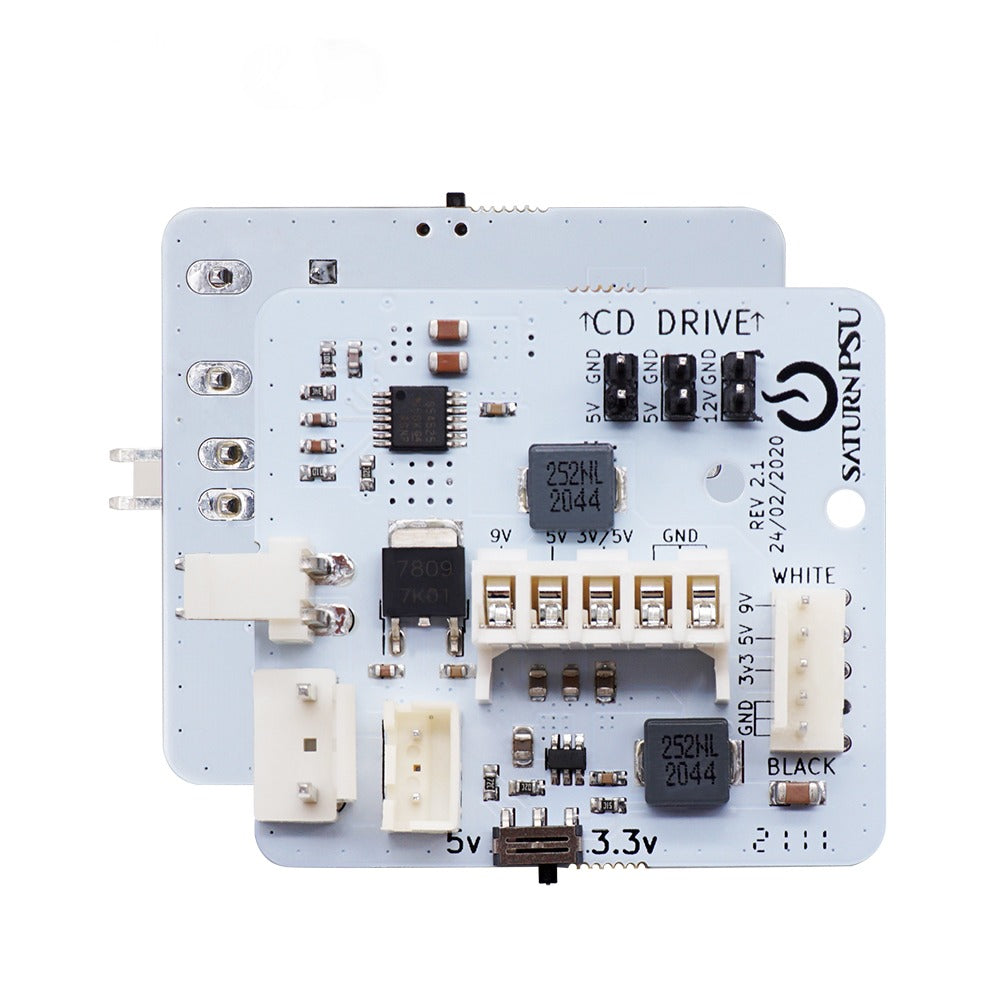

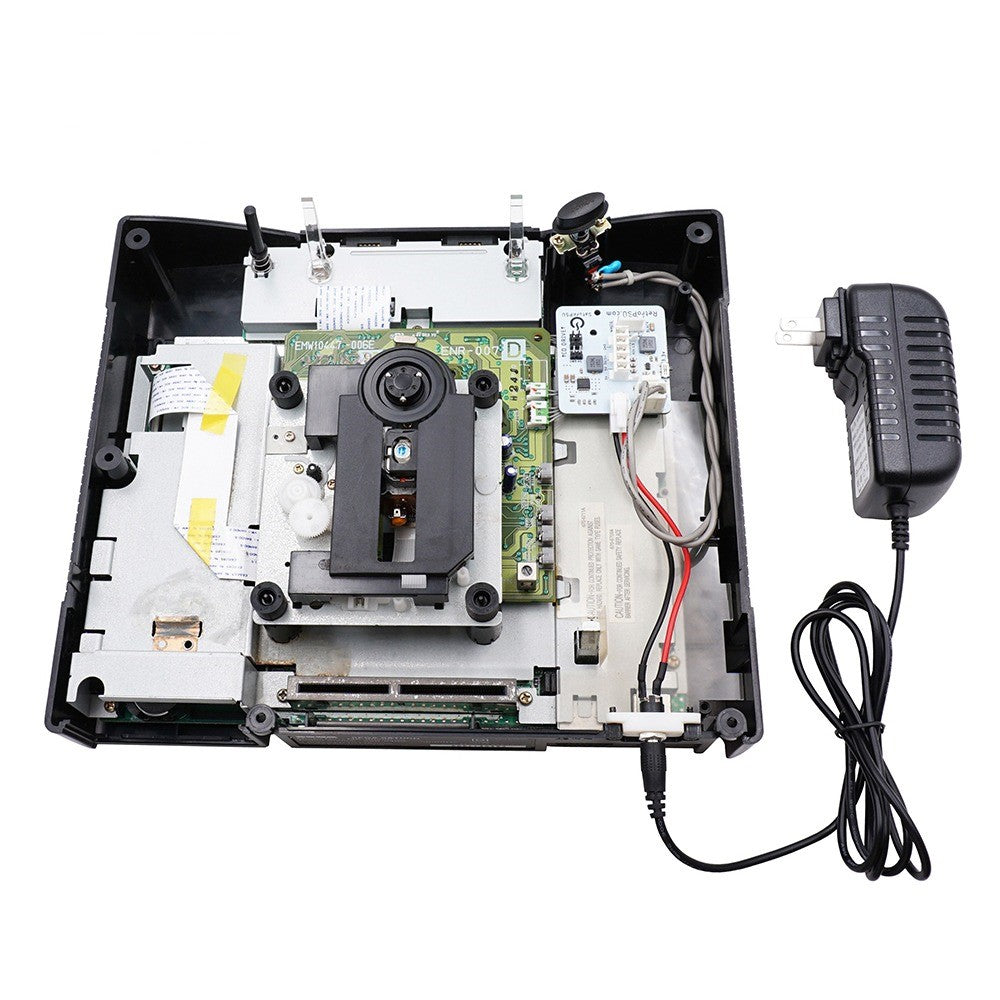

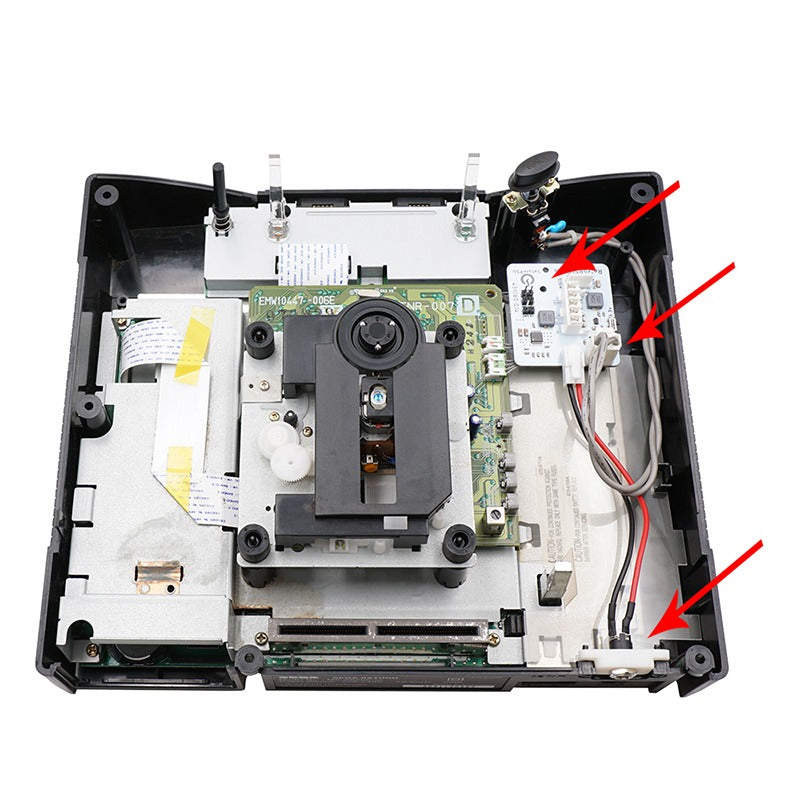

This power supply replaces the Sega Saturn's original power supply, and is an easy solution for a failing power board.

FEATURES:

Compatible with all Saturn models.
Reduces heat of original power supply in the console.
Extends overall life of console.
Frees up space for other mods as needed.
Voltage adjustment switch.
Solderless.
12V 3 amp power supply (See notes)
DC barrel jack is 5.5mm OD, 2.5mm ID.
Includes USA version AC Adaptor. For EU,UK, AU, etc. you will need a plug adapter in order to use.

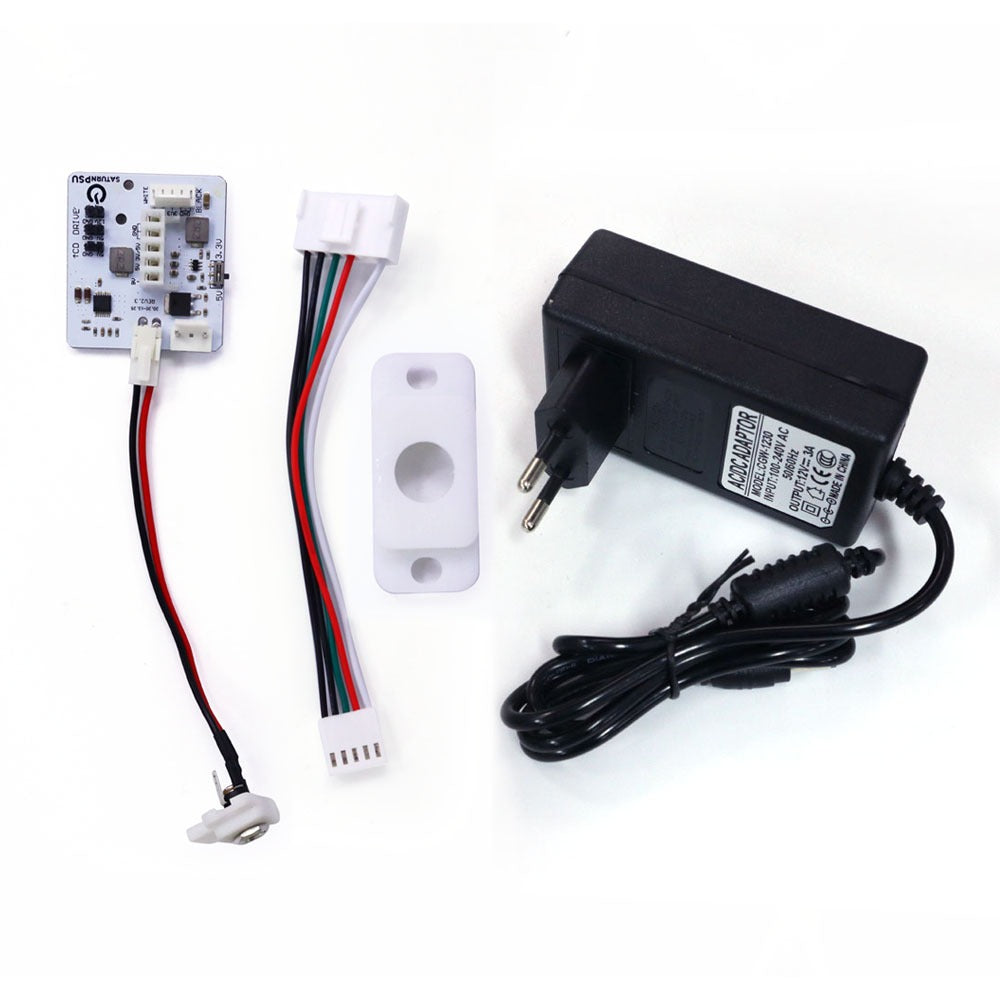

INCLUDED:

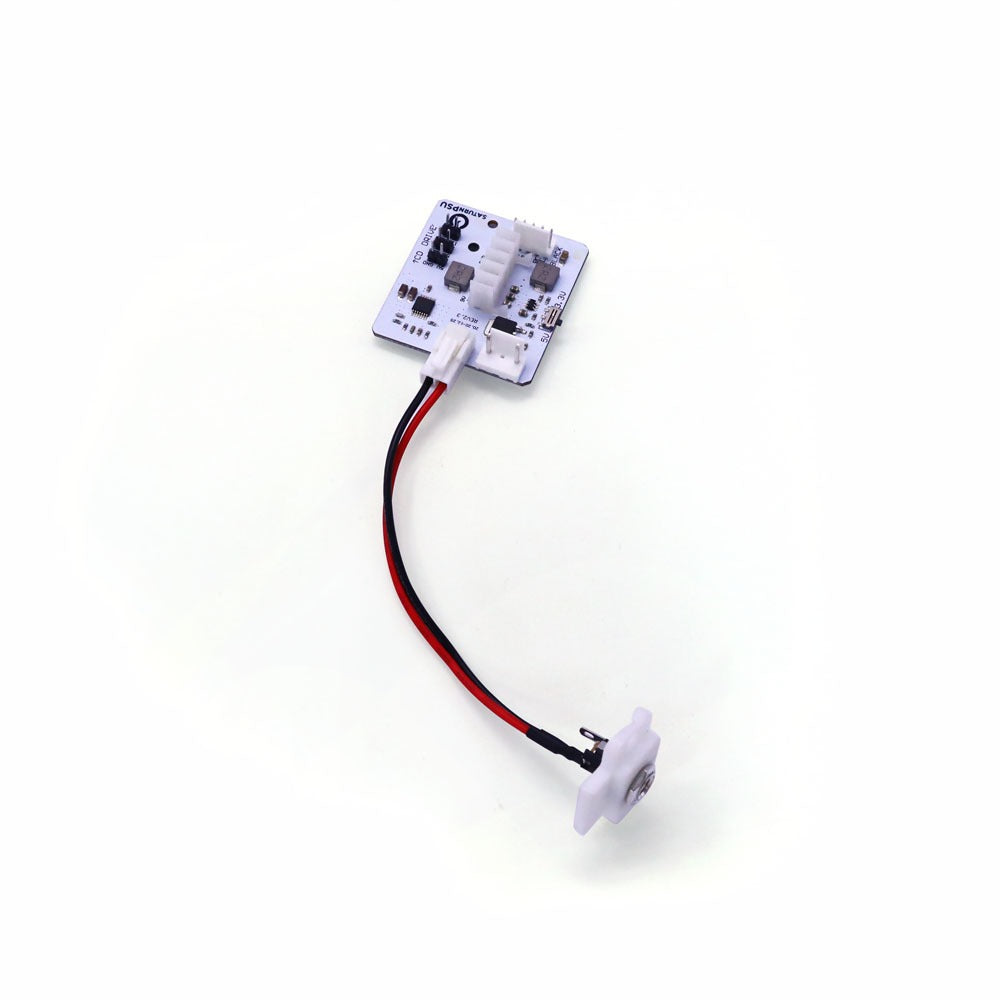

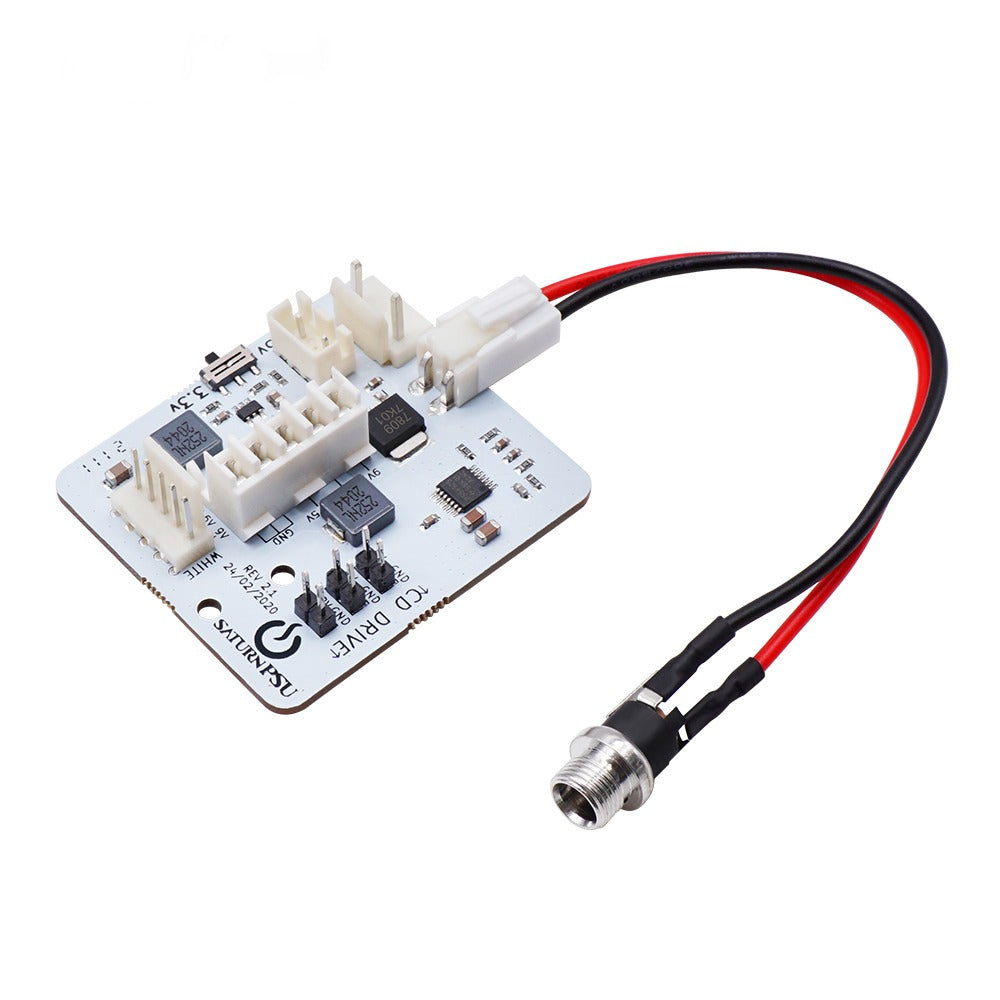

1x SaturnPSU PCB
1x Connector cable
1x 2x Installation cables

DOCUMENTATION:

Install Guide

NOTES:

If you experience noise on your screen, we suggest using your original power supply or purchasing another (with a transformer-based power supply) as the one included with this kit can cause the issue. Specifications: Input - 110~240V AC 50/60HZ, Output - DC 12V 3A, overload protection, short circuit protection, over voltage protection, efficiency - ≥80%, DC barrel jack is 5.5mm OD, 2.5mm ID, positive center pin/negative outside.

Missing manual. Rusty connector.

How you dare selling a product without its manual?! And in such a bad state! For real... the power brick it came up with was also causing issues, and it required me to get another one of the same wattage.

Thanks for your feedback! We are currently working on getting install instructions for this product after having seen the previous two reviews on this. We will update the product page as soon as we have that info!

Good PSU

As descripted and easy to install

PSU seems fine, power adapter bad

Order another adapter if you buy this.

No instructions, low quality power brick

No instructions are included,

Low quality power brick that generates lots of noise in the picture,

When trying to get a refund for this handheld legend said because I opened it and installed it they cannot give me a refund and to get a better power brick somewhere else.

If you are buying a Saturn you probably dont need to change out the power supply, just see if your stock one works still. The stock power supply generated no additional noise in the picture.

Thanks for your feedback! The install instructions are listed on the product page. Regarding the power brick, we acknoweldge that it isn't the best quality and have updated the product page to suggest pruchasing another or using your original power supply.

Same as prior reviewer

PSU installs easily once you figure out how to do it for your particular console (no instructions provided whatsoever, not even digitally). The actual power adapter introduces horizontal lines on the screen, so I'll need to seek out a better option.

Works great, some caveats

The PSU is good. It doesn't come with the instruction manual that definitely exists for this product. Instead it comes with stickers for handheld legends. If you know about your Saturn model and aren't new to taking things apart, this isn't too much of a big deal but it does cost you some time with mounting the power input. The 12v power adapter that came with it introduced some rolling static into the video output so I had to buy a replacement on Amazon. Overall this product brought my Saturn back to life.
