Game Boy Advance V2 IPS LCD Backlight Kit with TV Output (Touch Sensor Version) - Hispeedido

Play your modded Game Boy Advance on your TV! This kit includes an exclusive cable to output your game to a modern TV. RCA input is required.

FEATURES:

• Connect to the original motherboard with a 9' composite RCA AV cable.
• Compatible with 32 and 40 pin GBA's.
• Press and hold Select + R + L for 5 seconds to TV mode.
• Complete with the same features as the V2 model.
• Soldering is required.
• Pair with HDMI converter for upscaled resolution.
• Connect to the original motherboard with a 9' composite RCA AV cable.
• If using our precut shells, some trimming near start/select may be needed (Please see Media section for examples).
• This kit does not have a function to adjust aspect ratio on your TV. If you experience any display cut off, you may need to adjust picture settings on your TV, however, this may vary by user.

INCLUDED:

• 1x IPS LCD

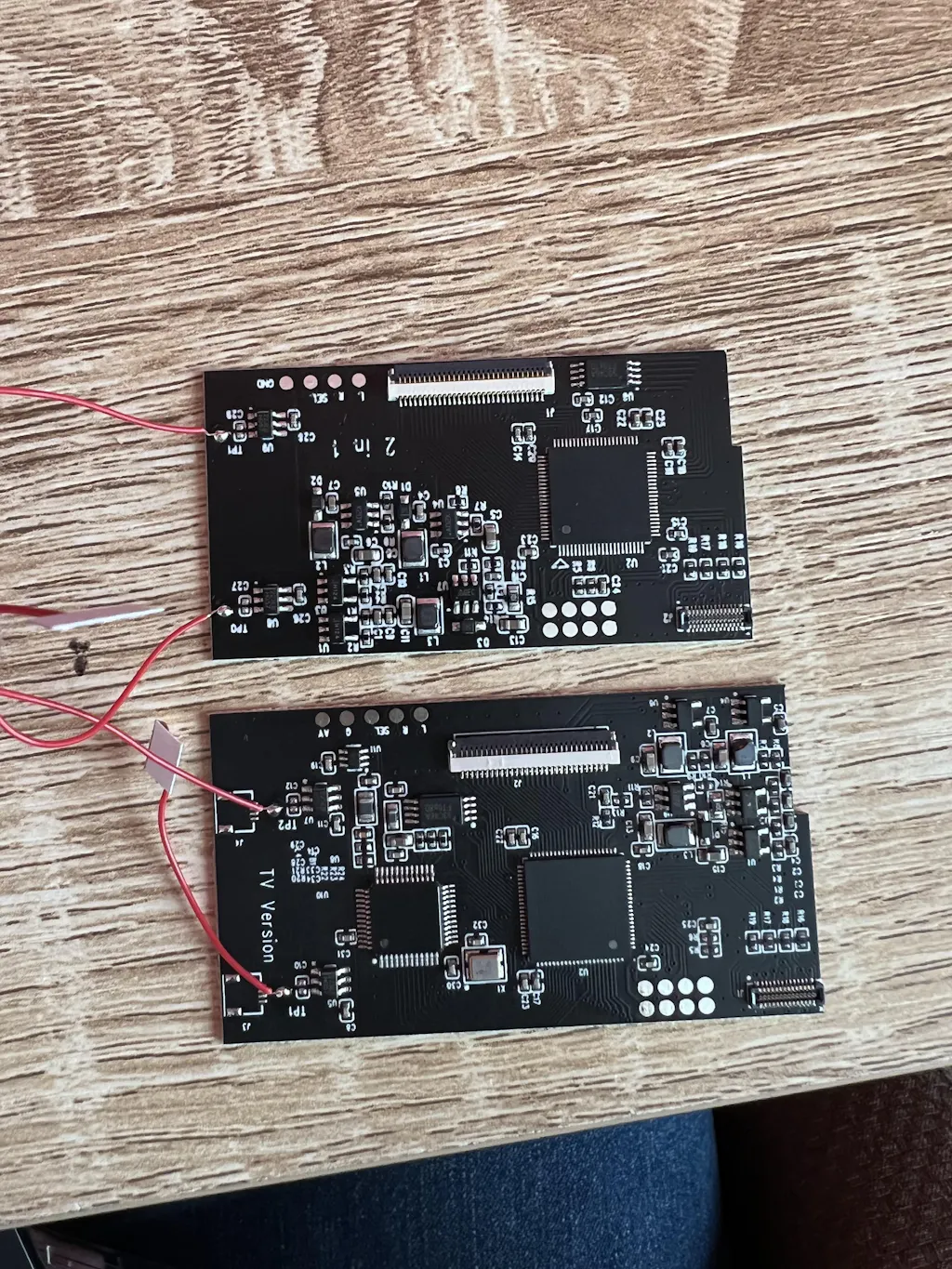

• 1x PCB with two pre-soldered touch sensor wires
• 1x Adhesive (Not needed if using custom bracket and dust guard)
• 1x 40 pin ribbon
• 1x 32 pin ribbon
• 2x Set of acrylic spacers
• 5x Wires
• 1x Link port to RCA AV cable

DOCUMENTATION:

• Install Guide
• Install Video
• How to test your LCD kit

NOTES:

• The IPS panel's viewing area is slight larger than that of the AGS-101. In order to make the entire display visible, the LCD requires a lens with a slightly larger viewing area (~1 mm on each side).
• Brightness touch adjustment includes pre-soldered wires.
• Optional: Button control brightness adjustment includes wires that will need to be soldered.
• Purchase a glass screen or upgrade to a tempered glass screen separately. A screen is NOT included in this kit.
• This installation requires removing the EM3 component. You will not be able to use traditional link cables after doing so.
• Bracket sold separately. Pair with a dust guard for easier install.
• After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.

WARNINGS:

• Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.

• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
