IPS LCD Kit V2 with TV Output for Game Boy Advance (Touch Sensor Version) - HISPEEDIDO

$69.99 USD
In stock! Usually ships within 1-2 business days.
SKU: GBA1765
Pickup available at 519 Davisville Rd.

Usually ready in 2-4 days

View store information

Play your modded Game Boy Advance on your TV! This kit includes an exclusive cable to output your game to a modern TV. RCA input is required.


  • Connect to the original motherboard with a 9' composite RCA AV cable
  • Compatible with 32 and 40 pin GBA's
  • Press and hold Select + R + L for 5 seconds to activate TV mode
  • Complete with the same features as the V2 model
  • Soldering is required
  • Pair with HDMI converter for upscaled resolution

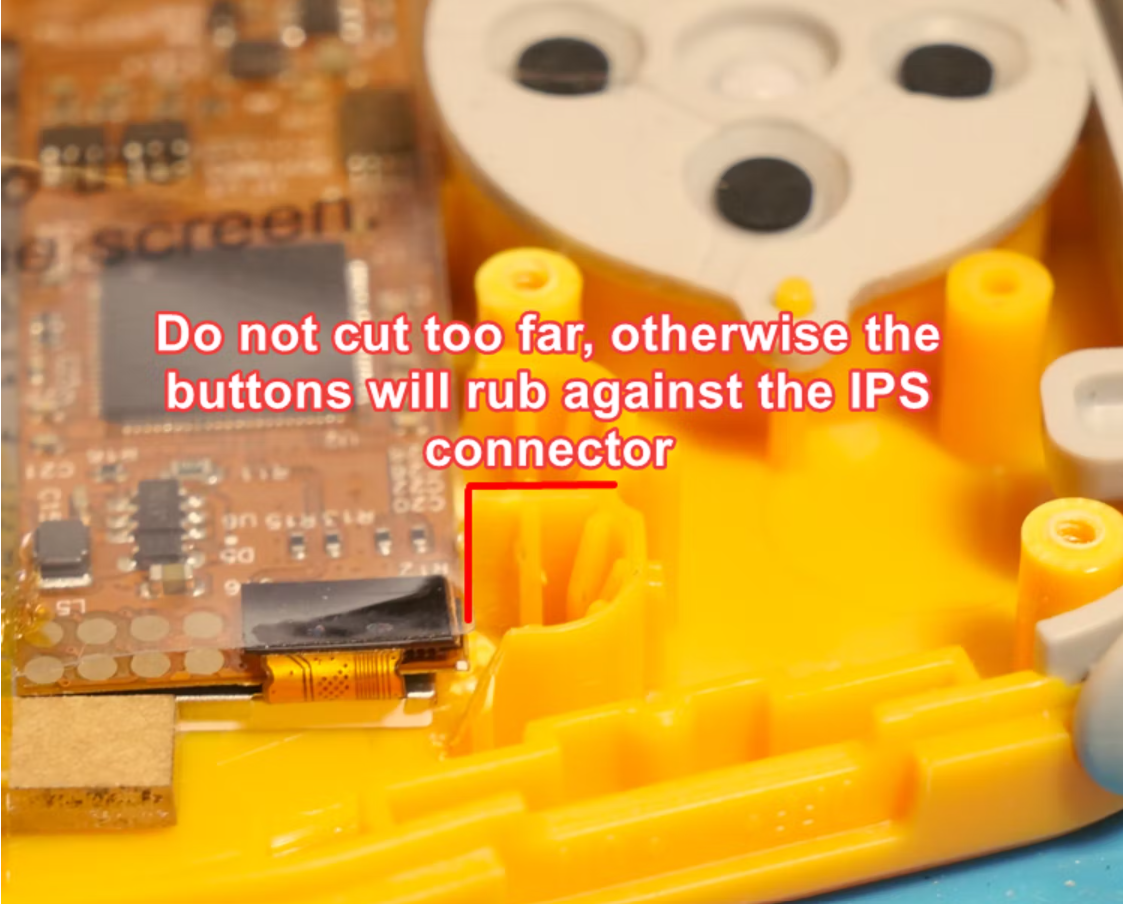

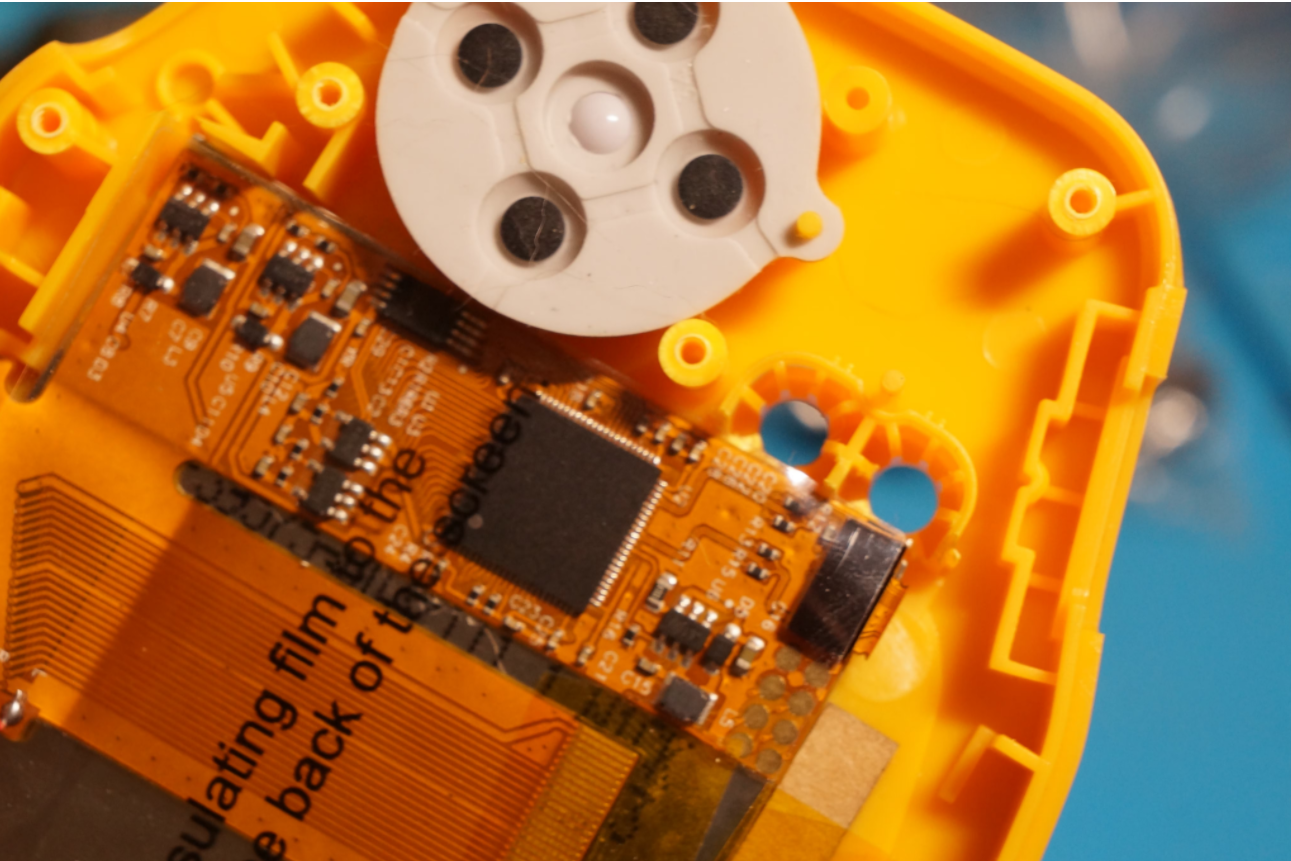

  • If using our pre cut shells, some trimming near start/select may be needed (Please see Media section for examples)
  • This kit does not have a function to adjust aspect ratio on your TV. If you experience any display cut off, you may need to adjust picture settings on your TV, however, this may vary by user.


  • 1x IPS LCD
  • 1x PCB with two pre-soldered touch sensor wires
  • 1x Adhesive (Not needed if using custom bracket and dust guard)
  • 1x 40 pin ribbon
  • 1x 32 pin ribbon
  • 2x Set of acrylic spacers
  • 5x Wires
  • 1x Link port to RCA AV cable



    • The IPS panel's viewing area is slight larger than that of the AGS-101. In order to make the entire display visible, the LCD requires a lens with a slightly larger viewing area (~1 mm on each side).
    • Brightness touch adjustment includes pre-soldered wires.
    • Optional: Button control brightness adjustment includes wires that will need to be soldered.
    • Purchase a glass screen or upgrade to a tempered glass screen separately. A screen is NOT included in this kit.
    • This installation requires removing the EM3 component. You will not be able to use traditional link cables after doing so.
    • Bracket sold separately. Pair with a dust guard for easier install.
    • After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.


    • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.

    • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Most products ship within 1 business day from our warehouse in Pennsylvania USA. Orders will be shipped in the order they are received. Please select a shipping speed according to your needs.

    About Us

    Hand Held Legend is committed to keeping retro gaming alive and better than ever. Upgrade your childhood consoles with modern tech. We strive for excellence in all that we do and aim to serve our customers well.

    Customer Reviews

    Based on 23 reviews
    High Quality. Great bang for buck


    It's nice but with 1 issue

    The screen is very crisp and nice, however there is a set of 3 pixels that were dead. They appeared when I did the screen test while assembling so I am guessing it is defective, but the rest of the screen is really nice and crisp and the color change sensors are a cool addition

    Screen is great issue is video out not working

    It was on sale so it was cheaper than buying just the ips screen by itself but doesnt work for tv video output. Beautiful screen i was thinking about not desoldering the em3 resister just so i could use cable transfer but since i had to desolder the resister em3 to get this to work so now i cant use the link cable and i also cant display my screen on the tv followed instructions perfectly maybe its the cable to the tv idk. Overall i would recommend the screen but giving 3 stars because no video out and now i cant transfer pokemon other than that for the price buy it and dont do the video out

    Best screen mod for an original GBA!

    The screen looks great, is responsive, great color depth, and has the perfect brightness settings. And I even tested it to see if it works with a GBAccelerator, and it does perfectly! Highly recommend this mod, video out is such a crazy feature for something like this.


    Composite output leaves a bit to be desired.

    Katie Danger @gamergirlgameboymods
    Great screen!!

    Easy to install and I've never had any issues with this. I highly recommend using a bracket or install guide, but overall am happy with this screen!
