Game Boy Advance SP V5 3.0 Inch IPS LCD Backlight Kit with Laminated Lens and OSD - Hispeedido

Game Boy Advance SP V5 3.0 Inch IPS LCD Backlight Kit with Laminated Lens and OSD - Hispeedido

Regular price $63.99 USD
Sale price $63.99 USD Regular price
Save $-63.99 USD Sold out

SKU : GBASP4103

This LCD upgrade for GBA SP features a pre laminated and connected PCB into the lens shell, as well as brightness levels and pixel effects.

FEATURES:

  • 720x480 display resolution.
  • Wide view angle.
  • V5 Pre-laminated glass screen lens and PCB board.
  • Display size is same as original LCD.
  • Only one wire to solder for OSD menu functionality.
  • 4 retro pixel effects.
  • 15 Brightness levels.
  • 8 Color modes.
  • Touch pad functionality for brightness and color adjustments.
  • Ribbon now has two points to solder to for the brightness wire. Both work, an extra is included as a backup.
  • Soldering 1 wire is optional for button activated OSD/brightness.
  • Shell modification required on non-IPS and OEM shells.

INCLUDED:

  • 1x LCD with adhered lens and attached PCB ribbon cable
  • 1x Wire

DOCUMENATION:

NOTES:

  • After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.

Touch sensor use:

  • After fully installed, press and hold down the left touch pad to cycle the color modes.
  • Press and hold down the right touch pad to cycle pixel effects.
  • Tap the right touch pad to cycle brightness.

If you soldered the brightness wire (Optional):

  • Hold the brightness button down for 5 seconds to activate the OSD menu.
  • Long press the button while in the menu to select the adjustment item. (Brightness, Color, Pixel)
  • Quick press the button to adjust the selection.

WARNINGS:

  • You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely an included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
  • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
  • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
Read More

Orders placed with us will be fulfilled within 1 to 2 business days. Delays may occur depending on the volume we experience. This is especially true during sales and around the winter holidays. Once a package is fulfilled, we are unable to make any changes to the order or cancel it. Please review your entire order and the shipping information before completing the order for accuracy. Refunds will not be given under these circumstances. Once packages leave our warehouse, it is not in our control how fast it will get to you from there regardless of shipping option chosen. The shipping times shown are estimates, not guarantees. Refunds will not be given under these circumstances.

Free Shipping for order of $75 or more*. Exludes Ultimate conoles and custom controllers.

Hand Held Legend is committed to keeping retro gaming alive and better than ever. Upgrade your childhood consoles with modern tech. We strive for excellence in all that we do and aim to serve our customers well.

*If you would like to return or receive a refund on any item, please contact support@handheldlegend.com first to ensure that your item will qualify.

Purchases are eligible for return within 30 days of purchase. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes, but is not limited to, the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return. If a backlight/LCD is returned and shows any signs of having been installed, it will not be eligible for a refund.

Requested returns/refunds/exchanges for items you believe to be defective, will be subject to a troubleshooting process with our support team before proceeding with a return/replacement/refund.

Modifying a product in any way, including but not limited to removing or adding components, will result in the voiding of our return/refund policy.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Defective or damaged parts are free to return within 30 days of purchase. Shipping costs are not covered for items returned at a customer's request or the refusal of the troubleshooting process with our support. Refunds for shipping costs and Route Shipping Insurance will not be given.

Please note that international orders are not eligible for a prepaid shipping label for returns on defective products. Returns must be paid for by the customer.

To complete your return, we require a receipt or proof of purchase.

Returns can be sent to:
Hand Held Legend
Attn: Returns
519 Davisville Road; Unit 102
Willow Grove, PA 19090

There are certain situations where only partial refunds are granted (if applicable).

We reserve the right to deduct an amount proportional to the chosen shipping return method from your refund if you order does not quality for a free return:

Refund Deduction Amounts by Shipping Method (USA):

  • $5.00 for USPS First Class Mail Returns
  • $10.00 for USPS Priority Mail Returns
  • $13 for all over carrier returns

REFUNDS (IF APPLICABLE)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your original method of payment, within 1-7 business days.

Refunds for shipping costs and Route Shipping Insurance will not be given.

LATE OR MISSING REFUNDS (IF APPLICABLE)

If you haven’t received a refund yet, first check your bank account. Then contact your bank or credit card company. It may take some time before your refund is officially posted.

If you’ve done all of this and you still have not received your refund, please contact us at support@handheldlegend.com.

EXCHANGES (IF APPLICABLE)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at support@handheldlegend.com.

CANCEL/EDIT ORDERS

You may cancel or edit orders yourself (before fulfillment) by following the steps in this guide. If you edit/cancel your order, you can expect a refund within 1 to 7 business days. Orders that have been fulfilled by our shipping team cannot have edits made or be canceled. We will do our best to assist customers in this process if needed, but it is the responsibility of the customer to ensure that their order and shipping information is correct before processing the order. We are not responsible for any issues that may occur due to incorrect items, shipping information, etc on orders.

Friendly Returns

Secure Checkout

1-2 Days Shipping

Prompt Customer Support

Customer Reviews

Based on 39 reviews
90%
(35)
5%
(2)
5%
(2)
0%
(0)
0%
(0)
A
Angelo Sanchez
It,’s great

It came as said, welp kept and safe. When i stall it worked like a charm

O
Orlando Farias
Best screen !

First time modding a gameboy advance SP very easy install will buy again the only thing I wish was that the screen came with the (holographic gameboy) instead of the gray font

C
C.B.
Works great!

Bought this to give my gameboy a new life, it works great I’ve bought two of them, I’m a big fan they change the way you play your retro games!

R
RDusel
Brings a classic to today's quality and gives new life

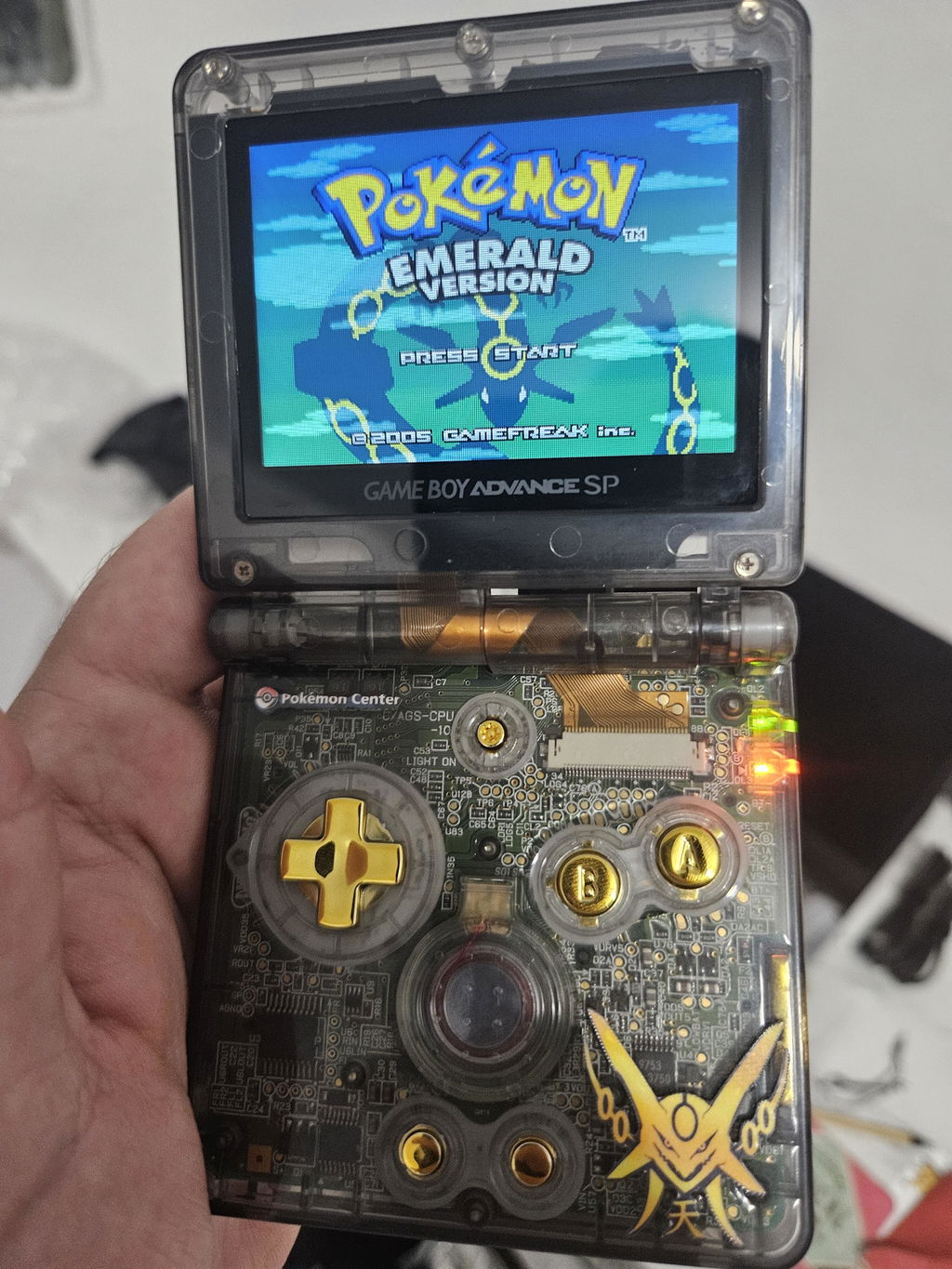

When going though my neglected for years Gameboy box I had powered up my Gameboy Advance and the years have not been kind to the early front lit LCD color panel. Panel was dim and poor. The 3" IPS replacement screen was easy to install and looks great! This is a critical machine for playing the early B&W GB games (as well as the newer advance games) and this screen makes it bright and enjoyable, much better than when it was new!
