**This kit is strongly recommended to use with these shells only**
Upgrade your Game Boy Color with the Laminated AMOLED Retro Pixel Touch Screen Kit by Hispeedido. Enjoy distortion-free visuals with high-definition LCD and 16:1 integer scaling. With touch function and 25% more display area, it also features a built-in OSD menu, Retro Pixel effects, frame blending, 10 brightness levels, and 8 color modes.
FEATURES:
- 16:1 Integer Scaling
- 25% Larger Display Area
- Built-in OSD Menu with Touch Screen Controls
- 4 Retro Pixel Effects
- 32 Logo Color Options
- Frame Blending Functionality
- 10 Brightness Levels
- 8 Color Modes
- Adjustable Image Position
- LCD is pre-laminated to glass lens.
- Display area is larger than the original. Only recommended when using a custom laminated shell from Hispeedido or the FunnyPlaying Laminated shells. Shell modification required for all other shells. No refunds are given if a non-recommended shell is used.
INCLUDED:
- 1 x Laminated AMOLED Display
- 1 x PCB
- 1 x Flex Cable
- 2 x Wires
- 1x Insulation Film
- 3x Pieces of Kapton Tape
PAIRS WELL WITH:
- Game Boy Color OLED Laminated Shell - Hispeedido
-
Game Boy Color Retro Pixel Laminated Q5 IPS Shell - FunnyPlaying
DOCUMENTATION:
- Install Guide
- Non-recommended shell trim guide - *Please read warning at the top of product page before proceeding with purchase/install. We only recommend pairing this IPS kit with the laminated shells by FunnyPlaying or the laminated shells by Hispeedido. All other shells will require modifications, install at your own risk.
- How to test your LCD kit.
NOTES:

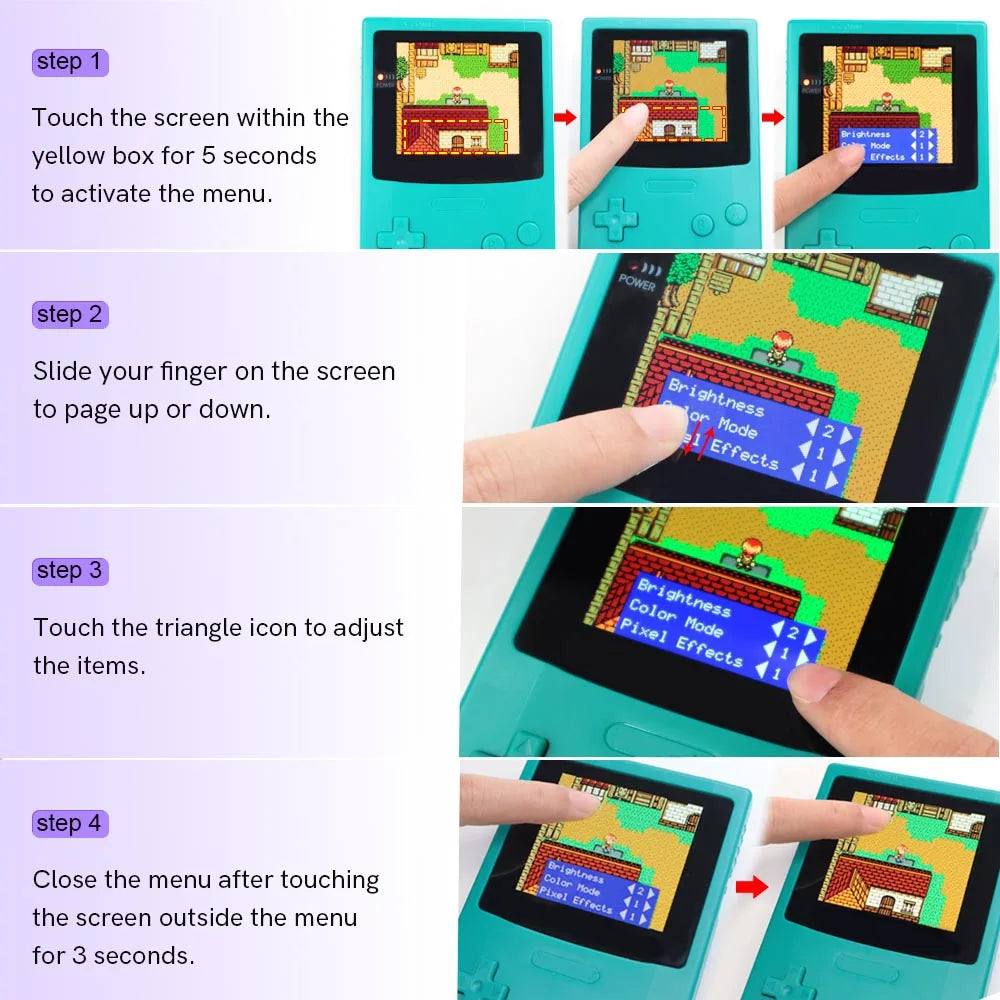

- Touch the bottom of the screen for 5 seconds to bring up the OSD menu.
- Swipe up and down to navigate, use arrows to adjust values.
- We only recommend installing this kit in laminated shells linked above. All other shells will require trimming, install at your own risk.
- Applicable console text is present on glass lens.
WARNINGS:
- You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
-
Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
-
LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
- Damage to console or LCD may occur if you do not trim the cartridge port pins. Exercise caution when trimming pins, wear eye protection to protect from pin debris when cutting the metal. Damage caused by these pins are not covered under our return or exchange policy. Trim the pins of your Gameboy's cartridge slot flat so that they don't interfere with any parts of the kit. We also recommend placing some Kapton tape over the trimmed pins to prevent any shorts.
- *Soldering the BAT wire is required for operation of this kit. Soldering this wire only will not void the return policy.
