SKU : GBC4009

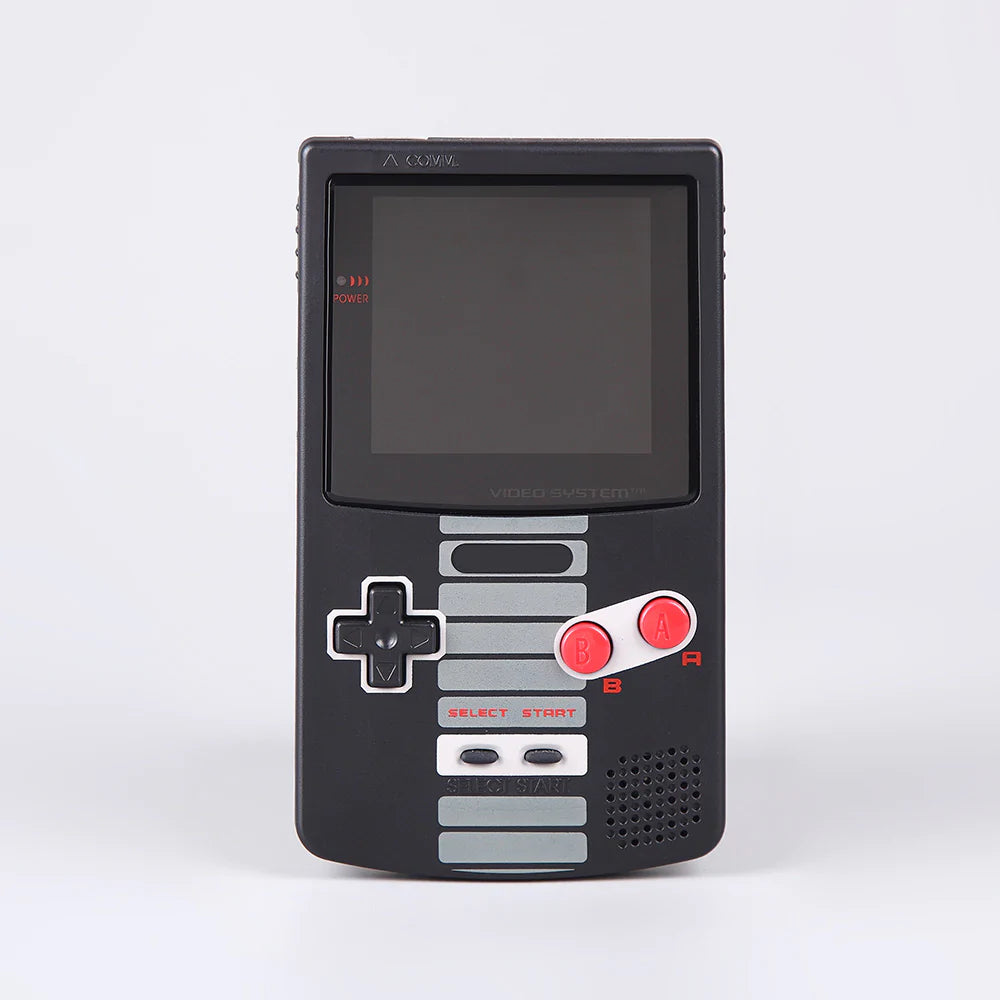

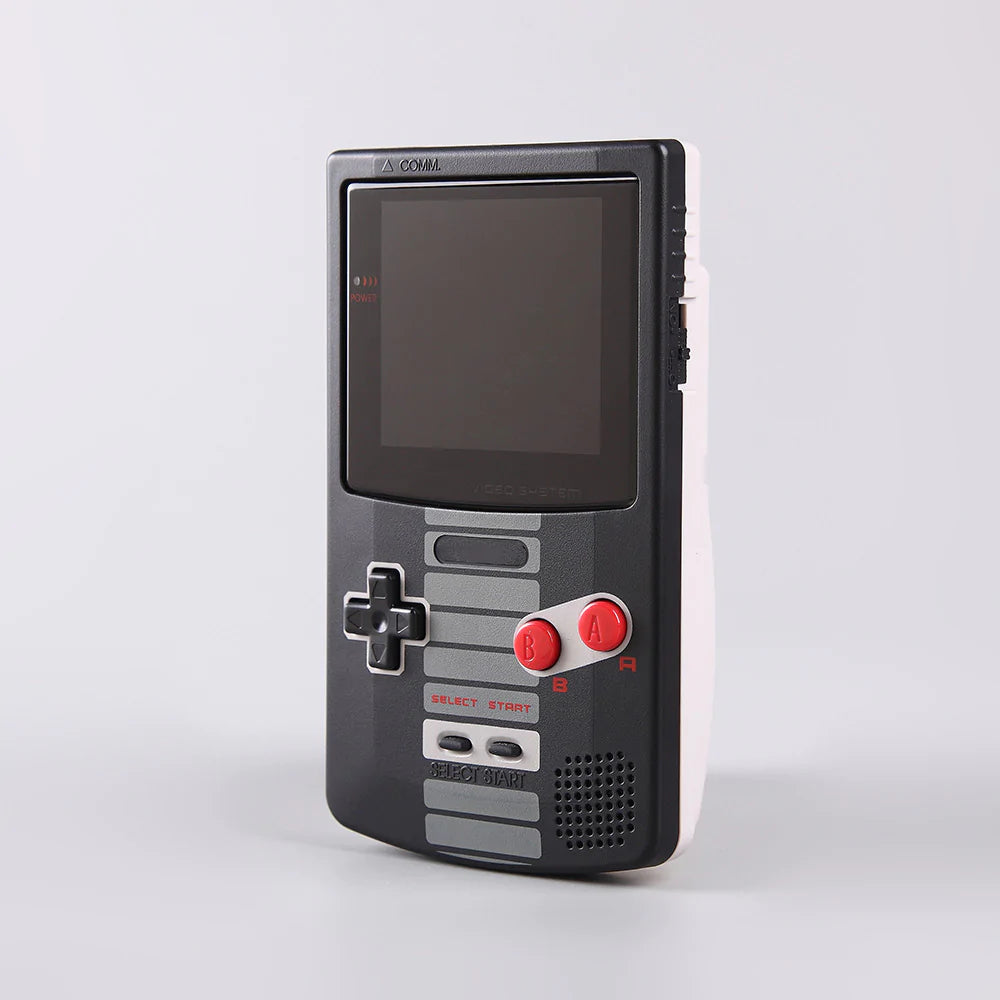

IThe Game Boy Color NES Retro Pixel Laminated LCD Kit from FunnyPlaying is a step up from standard IPS display mods featuring a laminated LCD along with a custom NES style shell and custom Video System™ screen lens.
FEATURES:
- A Full Kit to modify your GBC
- Laminated IPS Kit - No need to worry about dust getting trapped under the lens
- 25% larger display area than the original
- 5 built-in display effects
- The 2.5D version indicates a radius on the edge of the glass screen lens

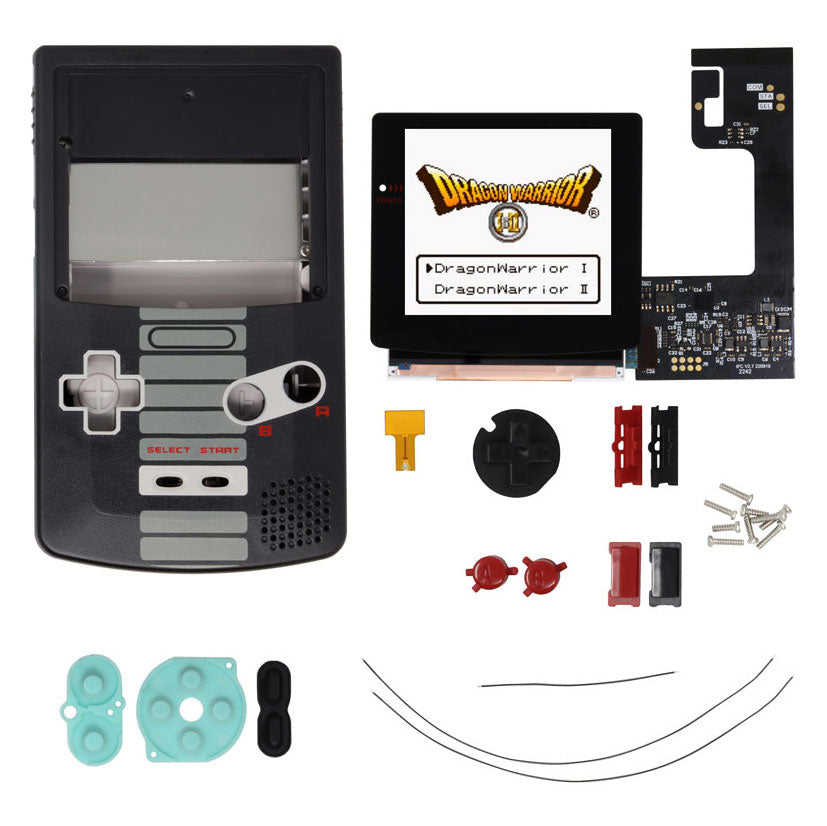

INCLUDED:
- 1 x Laminated GBC IPS Kit LCD or Laminated 2.5D GBC IPS Kit LCD
- 1 x PCB ribbon cable with attached touch sensor
- 1 x Touch sensor ribbon
- 2 x 20mm Wire
- 1 x 5mm Wire
- 1x Insulation film
- 1 x NES Style GBC Shell (front & back with battery cover)
- 1 x Set of NES Style GBC Buttons
- 1 x Set of GBC Membranes
- 1x Set of screws
PAIRS WELL WITH:
DOCUMENTATION:
-
Install Guide
- Install Video - NOTE: Please refer to install guide before using the video. Guides will have very important information and steps needed that the videos may lack.
- How to test your LCD kit
NOTES:
-
FUNCTIONS:
- Hold down START and SELECT together for a few seconds, the "GAME" on the lens should be the only word lit up. This is "Mode 1." Here you can use the SELECT and START button to move the display image down and up respectively.
- Tap on the touch sensor to bring it to "Mode 2." You should see "Boy" lit up now. Here You can use SELECT and START to move the display image left and right respectively.
- Tap on the touch sensor again to bring it "Mode 3." You should see "Color" lit up. Use START and SELECT separately to cycle through the different color options.
- Hold down START and SELECT together again for a few seconds to confirm, and exit.
- To cycle the different Pixel modes, tap and hold where the touch sensor is for a few seconds, and the LCD will change to different screen modes each time you perform this.
-
PIXEL MODES:
- Built-in 5 display effects.
- Full pixel copy display (display the highest brightness, gorgeous and concise)
- Classic GBC display (perfectly restore the original display effect)
- Classic RGB display (perfectly restore the original display effect, and the pixel gap looks smaller, the brightness will be slightly darker)
- RGB display (closest to the original display, but the brightness is very low)
- Grid line display (close to the display effect of DMG)
- After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.
- The shells feature self-threading screws as the screw posts are not pre-threaded. To avoid damage, do not over-tighten, as this may cause cracks. Refunds are not given in these instances.
WARNINGS:
- Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
-
LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
- Damage to console or LCD may occur if you do not trim the cartridge port pins. Exercise caution when trimming pins, wear eye protection to protect from pin debris when cutting the metal. Damage caused by these pins are not covered under our return or exchange policy. Trim the pins of your Gameboy's cartridge slot flat so that they don't interfere with any parts of the kit. We also recommend placing some Kapton tape over the trimmed pins to prevent any shorts.
